Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Remove the crankshaft position sensor reluctor ring. Refer to Crankshaft Position Sensor Reluctor Ring Replacement (Automatic Transmission) .
Punch a bore into the crankshaft seal, use a suitable tool.

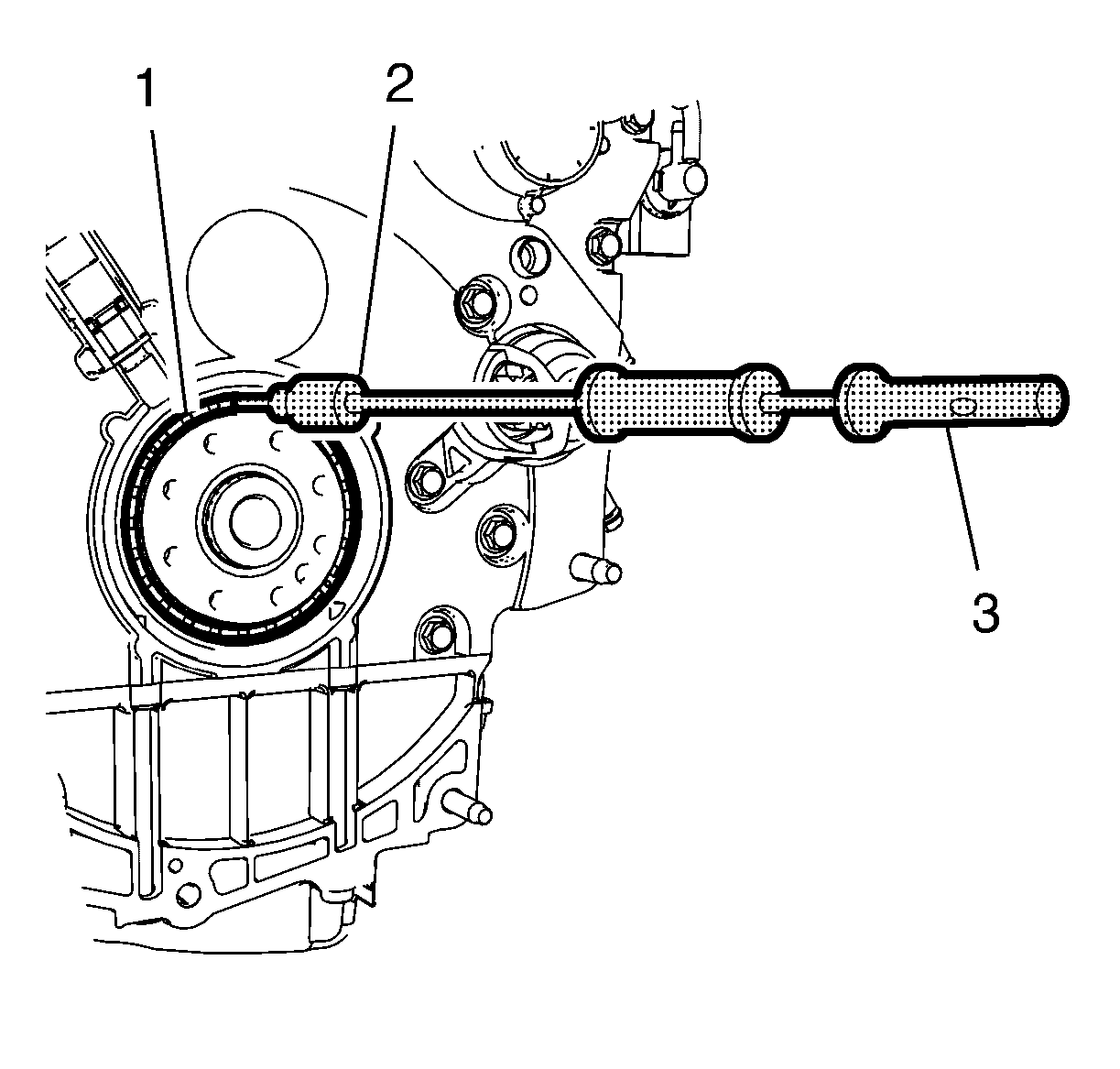

- Install the EN-6624 remover (2) into the oil sealing ring (1).
- Install the GE-328-B remover (3) to the EN-6624 remover (2).
- Remove the crankshaft rear oil seal, with the GE-328-B remover.
