Removal Procedure

WARNING: This page is about a different variant/trim than selected.

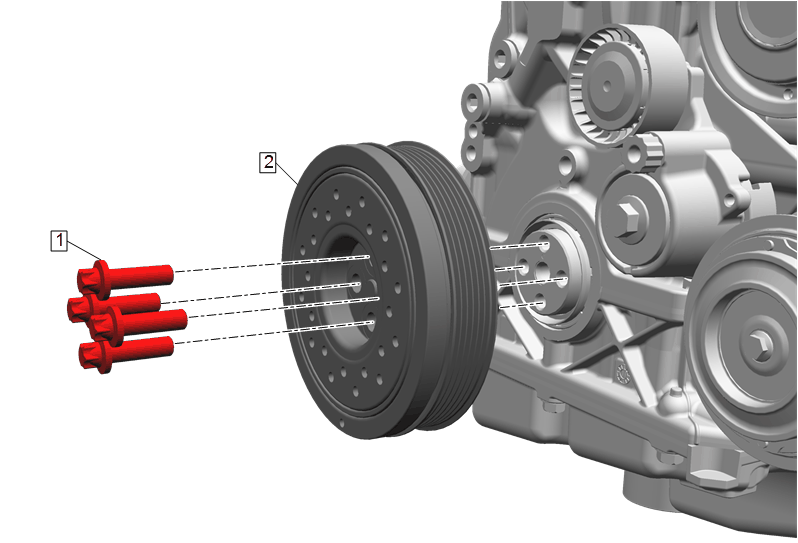

  1. GM5135562Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Pulley (2) - Remove - Crankshaft Pulley Replacement

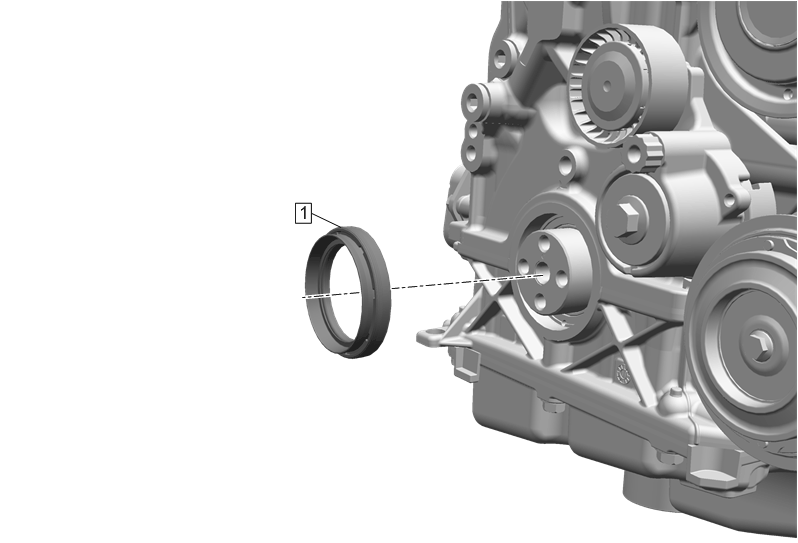

  2. GM5135690Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Front Oil Seal (1) - Remove - Crankshaft Front Oil Seal Removal
