Emission Reduction Fluid Tank Filler Cap Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Component Name
Preliminary Procedures Open the fuel tank filler door. Rear Wheelhouse Liner - Right Side - Remove - Rear Wheelhouse Liner Replacement

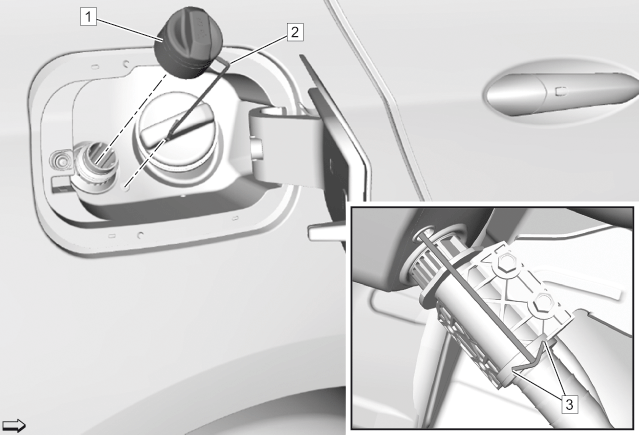

1	Emission Reduction Fluid Tank Filler Cap
2	Emission Reduction Fluid Filler Cap Stripe
3	Emission Reduction Fluid Filler Cap Stripe Securing Procedure Compress the emission reduction fluid filler cap stripe securing to remove the emission reduction fluid filler cap.
