Preliminary Procedures
- Tire and Wheel Removal and Installation
- Rear Tire Front Air Deflector Replacement
|

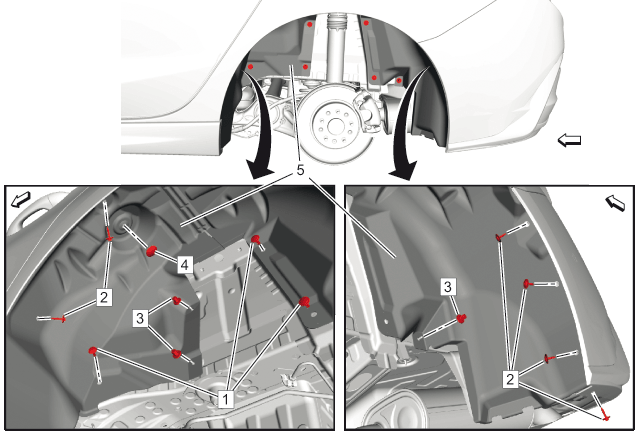

| 1 |
Rear Wheelhouse Liner Retainer [3x] |
| 2 |
Rear Wheelhouse Liner Bolt [6x]
Tighten
2.5N.m (22 lb in) |
| 3 |
Rear Wheelhouse Liner Nut [3x]
Tighten
2.5N.m (22 lb in) |
| 4 |
Rear Wheelhouse Liner Retainer |
| 5 |
Rear Wheelhouse Liner |
