Camshaft Position Actuator Solenoid Valve Replacement - Intake

Courtesy of GENERAL MOTORS COMPANY

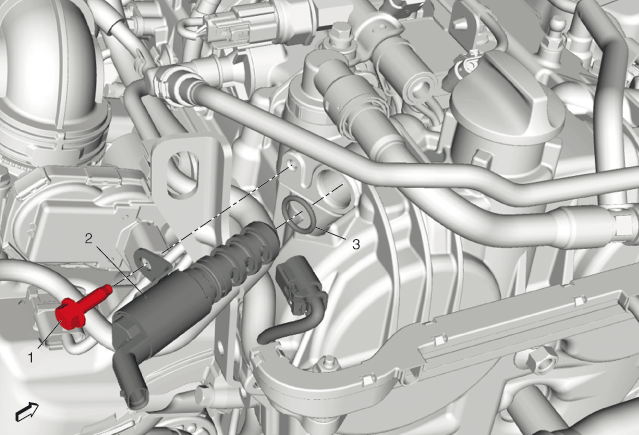

Callout	Component Name
Preliminary Procedures Engine Sight Shield Replacement - Remove Disconnect the electrical connector.
1	Camshaft Position Actuator Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve
3	Camshaft Position Actuator Solenoid Valve Seal Procedure Remove and discard the camshaft position actuator solenoid valve seal.
