Engine Sight Shield Replacement

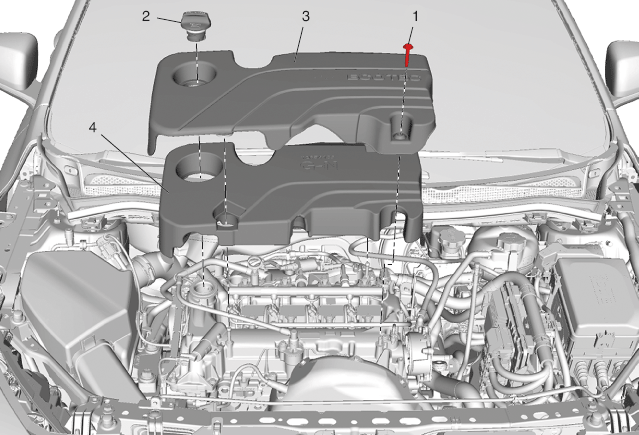

GM3764047Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Sight Shield Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Engine Oil Filler Cap
3 Engine Sight Shield
Procedure
Release the engine sight shield retainers by pulling the engine sight shield upwards.
4 Engine Sight Shield Insulator
