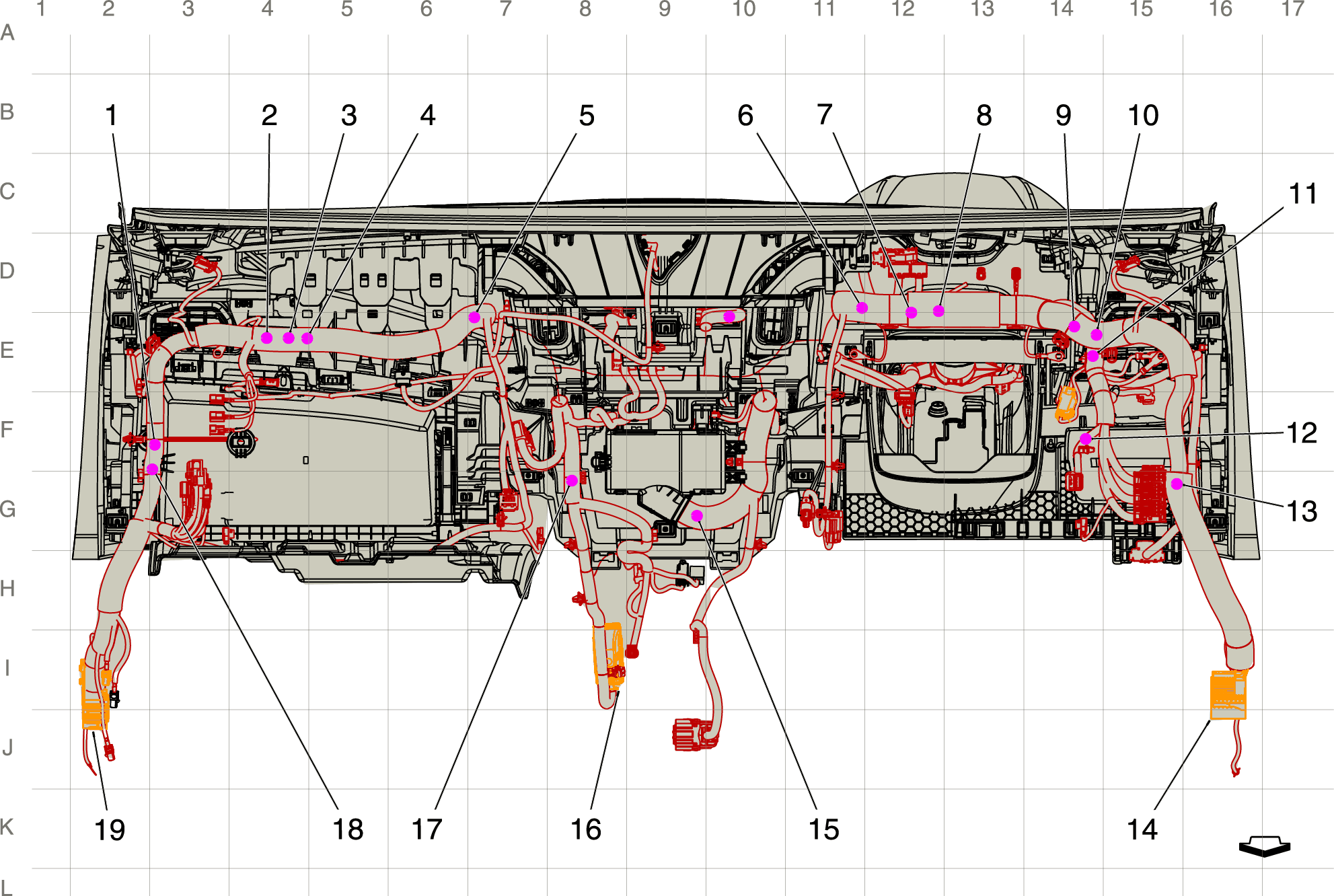

Instrument Panel Harness Routing

GM5045760Courtesy of GENERAL MOTORS COMPANY
Items
1. J216 Instrument Panel Harness
2. J218 Instrument Panel Harness
3. J210 Instrument Panel Harness
4. J217 Instrument Panel Harness
5. J213 Instrument Panel Harness
6. J208 Instrument Panel Harness
7. J209 Instrument Panel Harness
8. J211 Instrument Panel Harness
9. J213 Instrument Panel Harness
10. J214 Instrument Panel Harness
11. J200 Instrument Panel Harness
12. J202 Instrument Panel Harness
13. J226 Instrument Panel Harness
14. X200 Instrument Panel Harness to Body Harness (102 cavities) X200 Instrument Panel Harness to Body Harness
15. J216 Instrument Panel Harness
16. X300 Instrument Panel Harness to Floor Console Harness X300 Instrument Panel Harness to Floor Console Harness
17. J212 Instrument Panel Harness
18. J215 Instrument Panel Harness
19. X201 Instrument Panel Harness to Body Harness (56 cavities) X201 Instrument Panel Harness to Body Harness
