X201 Instrument Panel Harness to Body Harness

GM2537267Courtesy of GENERAL MOTORS COMPANY

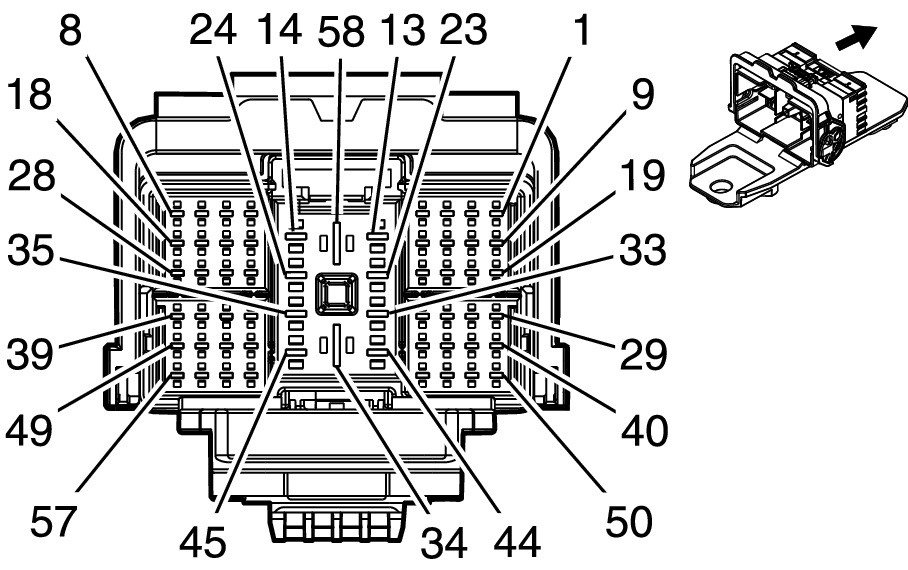

GM5116493Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13836614
  • Service Connector: 13395410
  • Description: 58-Way F 1.6, 2.8, 4.8 Timer Series (GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 35189769
  • Service Connector: 13395409
  • Description: 58-Way M 1.6, 2.8, 5.8 Timer Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575471 J-35616-4A (PU) EL-38125-560-A 964274-2 Lear 16 E 1
II 13575537 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
III 13575538 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
IV 13578863 J-35616-4A (PU) J-38125-36 Not Available Not Available Not Available Not Available
V 13579931 J-35616-14 (GN) EL-38125-560-A 964274-2 Lear 16 E 1
VI 13579967 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
VII 13582280 J-35616-4A (PU) EL-38125-560-A 964274-2 Lear 16 E 1
VIII 19368302 J-35616-42 (RD) J-38125-36 964328-1 Lear 25 4 B
IX 13575574 J-35616-5 (PU) J-38125-215A Not Available Not Available Not Available Not Available
X 13575593 J-35616-34 (YE) EL-38125-560-A Not Available Not Available Not Available Not Available
XI 13575775 J-35616-34 (YE) J-38125-215A Not Available Not Available Not Available Not Available
XII 13579919 J-35616-34 (YE) EL-38125-560-A Not Available Not Available Not Available Not Available
XIII 19368242 J-35616-32 (OR) J-38125-36 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - 2 - - - - - Not Occupied 1 - 2 - - - - -
3 0.35 VT/BU 6978 I - Amplifier Control 3 0.35 VT/BU 6978 XI -
4 0.35 GN/YE 7066 I - Entertainment Remote Enable Signal 4 0.35 GN/YE 7066 XI -
5 - - - - - Not Occupied 5 - - - - -
6 0.5 BARE 2099 VII - Left Rear Audio Low Reference 6 0.5 BARE 2099 X -
7 - - - - - Not Occupied 7 - - - - -
8 0.5 RD/GN 5140 VII - Battery Positive Voltage 8 0.5 RD/GN 5140 X -
9 - 10 - - - - - Not Occupied 9 - 10 - - - - -
11 0.75 YE/BU 1856 VII - Left Front Tweeter Speaker Control (+) 11 1.5 BU 201 XII -
12 0.75 YE/GY 1956 VII - Left Front Tweeter Speaker (-) Low Reference 12 1.5 BN/BU 118 XII -
13 - - - - - Not Occupied 13 - - - - -
14 2.5 RD/BN 1140 IV - Battery Positive Voltage 14 2.5 RD/BN 1140 IX -
15 0.5 GN/BK 599 VII - Left Rear Low Level Audio Signal 15 0.5 GN/BK 599 X -
16 0.5 BN/VT 1999 VII - Left Rear Low Level Audio (-) Low Reference 16 0.5 BN/VT 1999 X -
17 0.13 GN/GY 2555 II - Rear Park Assist Disable Signal 17 0.35 GN/GY 2555 XI -
18 - 20 - - - - - Not Occupied 18 - 20 - - - - -
21 1 YE/WH 1860 V - Front Center Speaker Control (+) 21 1.5 YE/WH 1860 XII -
22 1 BU/YE 1960 V - Front Center Speaker (-) Low Reference 22 1.5 BU/YE 1960 XII -
23 - 24 - - - - - Not Occupied 23 - 24 - - - - -
25 0.5 BN/WH 546 VII - Right Rear Low Level Audio Signal 25 0.5 BN/WH 546 X -
26 0.5 BU/BK 1946 VII - Right Rear Low Level Audio (-) Low Reference 26 0.5 BU/BK 1946 X -
27 0.13 GN/BN 5852 II - Rear Park Assist LED Disable Signal 27 0.35 GN/BN 5852 XI -
28 0.13 GN/GY 2555 VI - Rear Park Assist Disable Signal 28 0.35 GN/GY 2555 XI -
29 0.13 GN/BN 5852 VI - Rear Park Assist LED Disable Signal 29 0.35 GN/BN 5852 XI -
30 - - - - - Not Occupied 30 - - - - -
31 0.75 BN/GN 1852 VII - Right Front Tweeter Speaker Control (+) 31 1.5 YE 200 XII -
32 0.75 VT/BN 1952 VII - Right Front Tweeter Speaker (-) Low Reference 32 1.5 YE/BK 117 XII -
33 - - - - - Not Occupied 33 - - - - -
34 4 RD/YE 2172 VIII - 12V Regulated Supply Voltage 1 34 4 RD/YE 2172 XIII -
35 - - - - - Not Occupied 35 - - - - -
36 0.5 YE 512 VII - Right Front Low Level Audio Signal 36 0.5 YE 512 X -
37 0.5 YE/BK 1948 VII - Right Front Low Level Audio (-) Low Reference 37 0.5 YE/BK 1948 X -
38 0.35 WH 3152 I - Lane Departure Warning Indicator Control 38 0.35 WH 3152 XI -
39 - 41 - - - - - Not Occupied 39 - 41 - - - - -
42 0.5 GN/BK 599 III - Left Rear Low Level Audio Signal 42 0.5 GN/BK 599 X -
43 0.5 BN/VT 1999 III - Left Rear Low Level Audio (-) Low Reference 43 0.5 BN/VT 1999 X -
44 0.5 BN/WH 546 III - Right Rear Low Level Audio Signal 44 0.5 BN/WH 546 X -
45 0.5 BU/BK 1946 III - Right Rear Low Level Audio (-) Low Reference 45 0.5 BU/BK 1946 X -
46 0.5 BU 511 VII - Left Front Low Level Audio Signal 46 0.5 BU 511 X -
47 0.5 BN/BU 1947 VII - Left Front Low Level Audio (-) Low Reference 47 0.5 BK/YE 1947 X -
48 0.35 GY/WH 3153 I - Lane Departure Warning Disable Switch Signal 48 0.35 GY/WH 3153 XI -
49 0.5 BU 511 III - Left Front Low Level Audio Signal 49 0.5 BU 511 X -
50 0.5 BN/BU 1947 III - Left Front Low Level Audio (-) Low Reference 50 0.5 BK/YE 1947 X -
51 0.5 YE 512 III - Right Front Low Level Audio Signal 51 0.5 YE 512 X -
52 0.5 YE/BK 1948 III - Right Front Low Level Audio (-) Low Reference 52 0.5 YE/BK 1948 X -
53 - 54 - - - - - Not Occupied 53 - 54 - - - - -
55 0.5 BARE 2011 VII - Left Front Audio Low Reference 55 0.5 BARE 2011 X -
56 - 58 - - - - - Not Occupied 56 - 58 - - - - -
