Power Brake Booster Vacuum Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Dash Upper Extension Panel Opening Cover Replacement Power Brake Booster Vacuum Pipe Replacement (1.4L LE2) Power Brake Booster Vacuum Pipe Replacement (1.6L Diesel LH7)

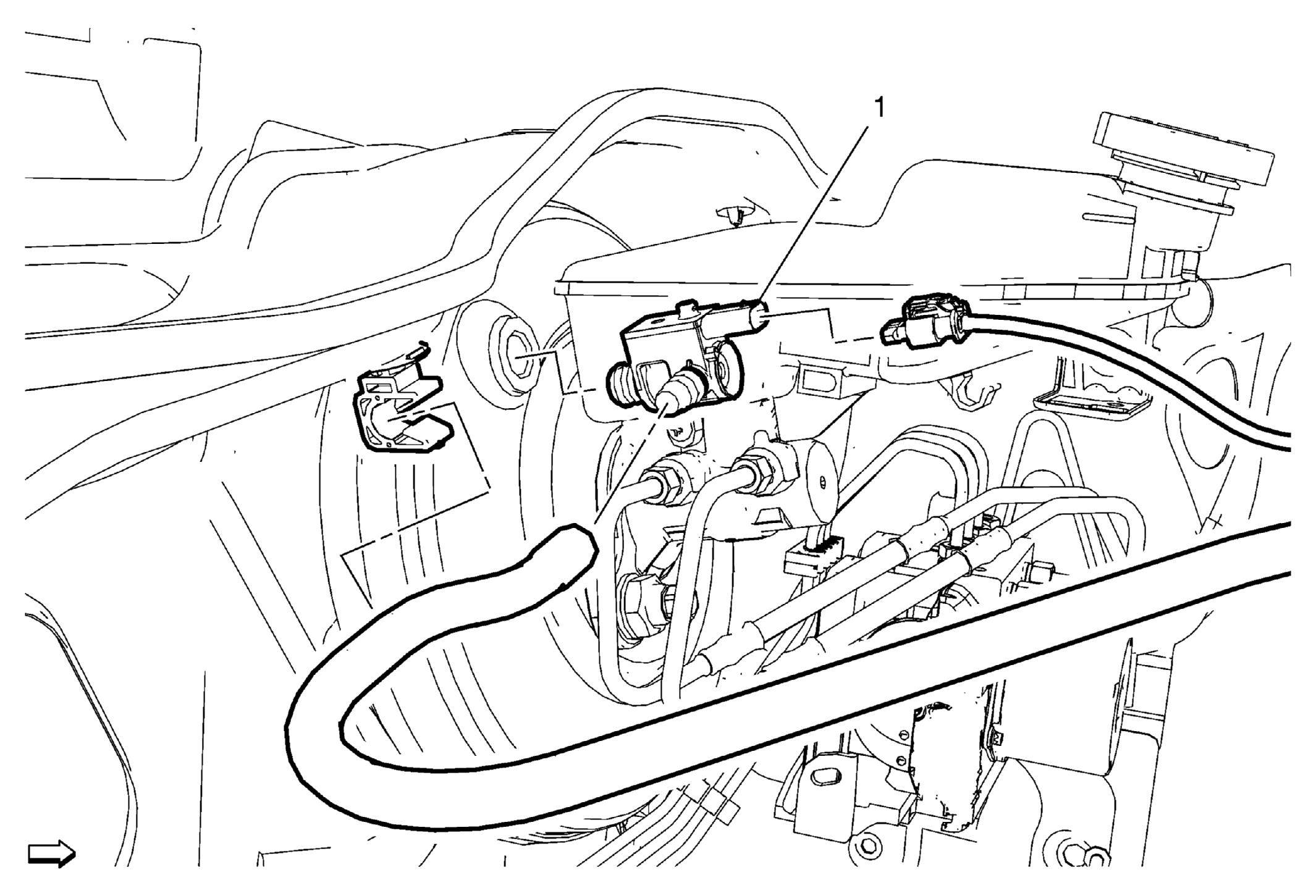

1	Power Brake Booster Vacuum Sensor NOTE: Ensure all passages of the vacuum pipe are clean and free of debris prior to installation. Procedure Disconnect from the power brake booster vacuum pipe.

Callout

Component Name

Preliminary Procedures

Power Brake Booster Vacuum Sensor

NOTE:

Ensure all passages of the vacuum pipe are clean and free of debris prior to installation.

Procedure
Disconnect from the power brake booster vacuum pipe.
