Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

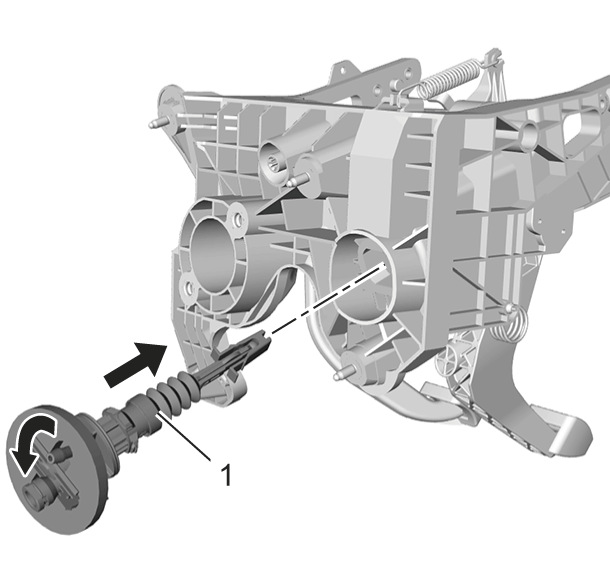

Turn the clutch master cylinder against clockwise to tighten the clutch master cylinder to the brake, accelerator, and clutch pedal assembly.
Connect the clutch pedal to the clutch master cylinder rod.
Courtesy of GENERAL MOTORS COMPANY

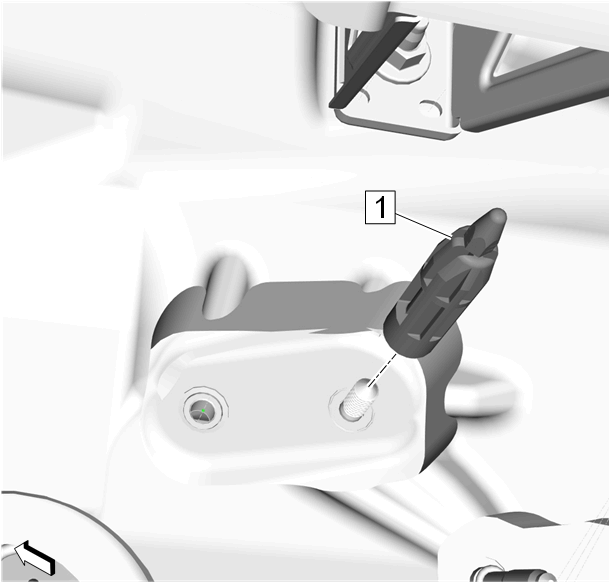

Install the third-hand-feature (1) to the vehicle.

NOTE:

Protect interior against draining brake fluid from clutch master cylinder.

Position the brake, accelerator and clutch pedal assembly to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Install the NEW click fit connector (1) to the brake pedal.
Courtesy of GENERAL MOTORS COMPANY

Connect the brake pedal push rod (1) to the brake pedal (2).
Install the wiring harness to brake, accelerator and clutch pedal assembly.
Courtesy of GENERAL MOTORS COMPANY

Install the 2 third hand features (arrows) to the brake and accelerator pedal assembly (2).
Bolt (1) - Loosely install [4x]
Connect the clutch pedal to the clutch master cylinder rod.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Tighten the 4 brake pedal bracket bolts (1) to 22 N.m (16 lb ft).
Brake Pedal Position Sensor Replacement - Install
Accelerator Pedal Replacement - Install
Floor Front Air Outlet Duct Replacement - Left Side - Install
Steering Column Replacement - Install
Install the intermediate steering shaft to the power steering. Refer to Intermediate Steering Shaft Replacement .
Courtesy of GENERAL MOTORS COMPANY

Install the 3 brake pedal bracket nuts (1) and tighten to 22 N.m (16 lb ft).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Clutch actuator cylinder front pipe must engage noticeably.

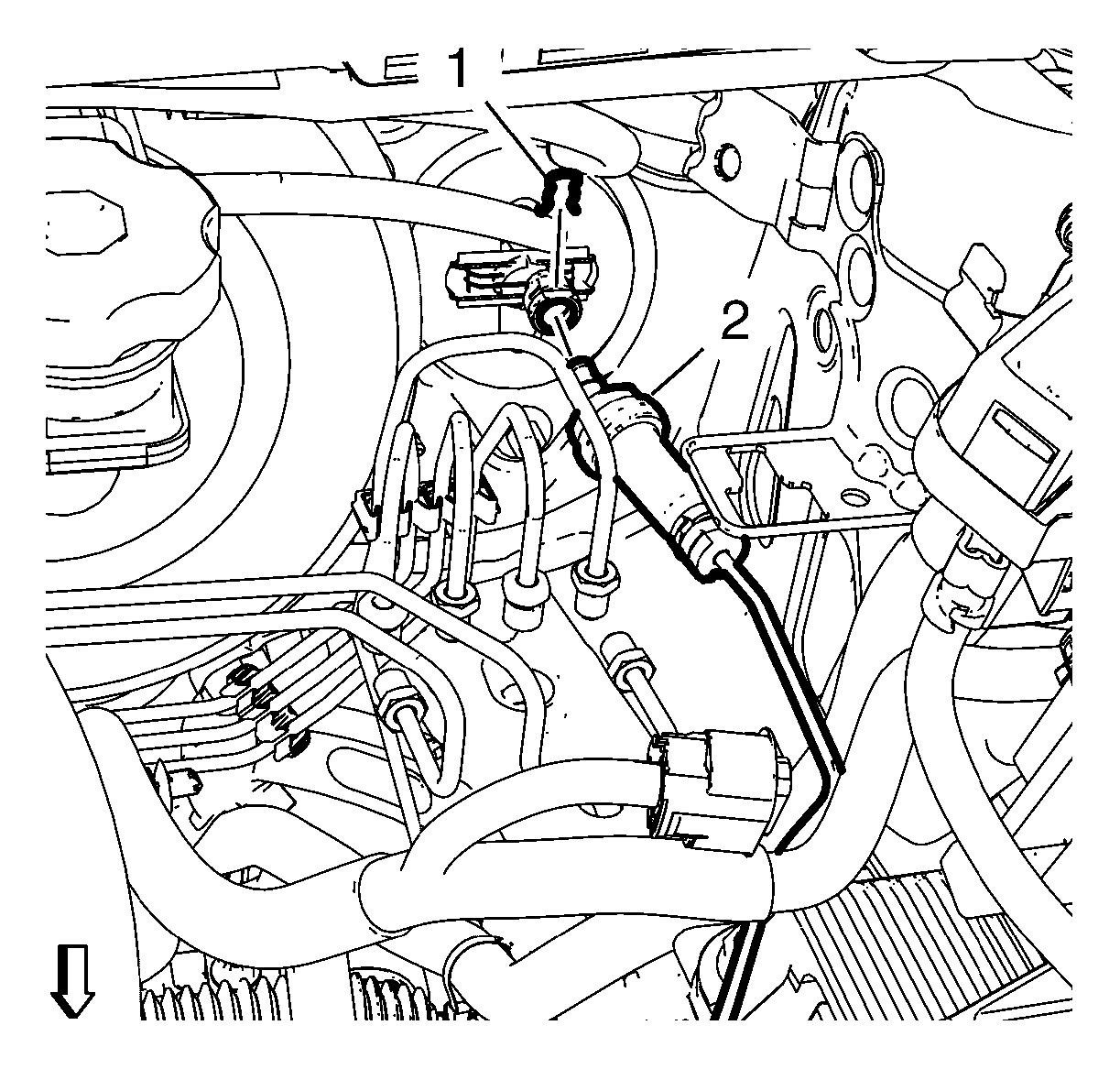

Clutch Actuator Cylinder Pipe (2) - Install
Clutch Actuator Cylinder Pipe Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the 3 brake pressure pipes (1) from the brake pipe retainer (2)
Courtesy of GENERAL MOTORS COMPANY

Install the brake pressure module valve bracket bolt (1) to the brake pressure module valve bracket (2) and tighten to 20 N.m (15 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Install the 2 power brake booster bolts (1) to the power brake booster and tighten to 19 N.m (14 lb ft).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure all passages of the vacuum pipe are clean and free of debris prior to installation.

If equipped, connect the power brake booster vacuum pipe (2) to the power brake booster.
If equipped, connect the power brake booster vacuum pipe (2) to the power brake booster vacuum pipe retainer (1)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure all passages of the vacuum pipe are clean and free of debris prior to installation.

If equipped, connect the power brake booster vacuum pipe sensor (2) to the power brake booster.
If equipped, connect the power brake booster vacuum pipe sensor connector (3) to the power brake booster vacuum pipe sensor.
If equipped, connect the power brake booster vacuum pipe (4) to the power brake booster vacuum pipe retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Install the brake fluid level indicator switch plug (1) to the brake fluid level indicator switch (2).
Install the brake fluid return hose (3) to the brake fluid reservoir (4).
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank (1) - Install
Radiator Surge Tank Clip (2) - Install
Dash Upper Extension Panel Opening Cover Replacement - Install
Battery Negative Cable Disconnection and Connection - Connect
Steering Column Lower Trim Cover Replacement - Install
Learn the brake pedal position sensor. Refer to Control Module References .
Learn the clutch pedal position sensor. Refer to Control Module References .
