Brake Master Cylinder Reservoir Replacement

Courtesy of GENERAL MOTORS COMPANY

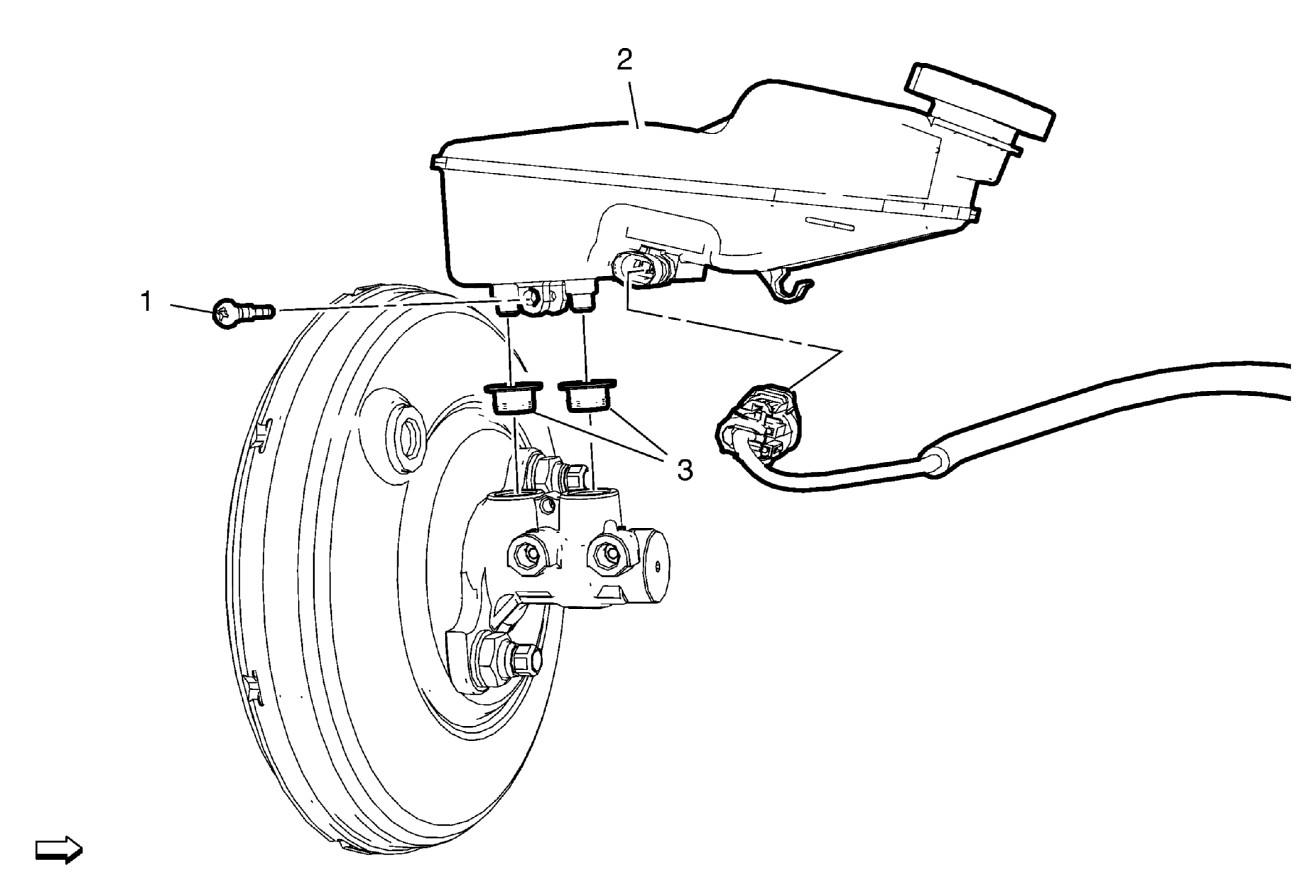

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . WARNING: Use of eye goggles is necessary to prevent personal injury. CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedures Dash Upper Extension Panel Opening Cover Replacement Using a suitable tool, remove and properly dispose of the brake fluid from the brake master cylinder reservoir.
1	Brake Master Cylinder Reservoir Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Brake Master Cylinder Reservoir Procedure { If equipped } Brake Fluid Return Hose - Remove
3	Master Cylinder Reservoir Seal [2x] Procedure Lubricate the brake master cylinder reservoir seals with GM approved brake fluid from a clean, sealed, brake fluid container. Adhesives, Fluids, Lubricants, and Sealers Hydraulic Brake System Bleeding
