Air Inlet Grille Panel Replacement

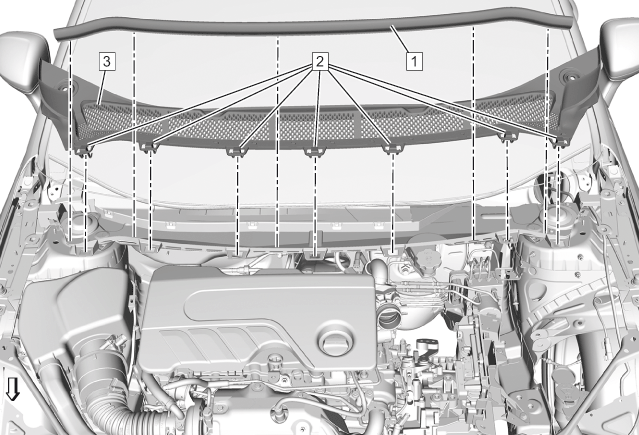

| Callout | Component Name |
|---|---|
| Preliminary Procedure Windshield Wiper Arm Replacement - Remove [2x] |
|
| 1 | Hood Rear Weatherstrip Procedure Hood Rear Weatherstrip@Air Inlet Grille Panel - Remove |
| 2 | Air Inlet Grille Panel Clip [7x] |
| 3 | Air Inlet Grille Panel
NOTE:
It is attached to the bottom of the windshield. Start at either end of grille and pull upward using considerable force to remove it. |
