Liftgate Replacement

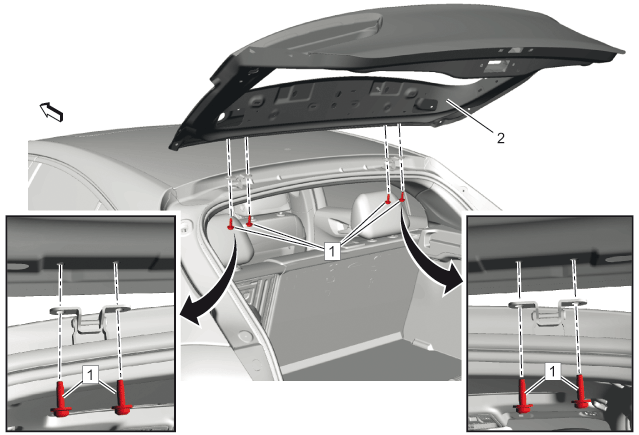

GM4353192Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedures

  1. Battery Negative Cable - Disconnect - Battery Negative Cable Disconnection and Connection
  2. Liftgate Strut [2x] - Unclip - Liftgate Strut Replacement
1 Liftgate Hinge Bolt [4x]
CAUTION:

Fastener Caution


Tighten
22 N.m (16 lb ft)

Procedure

  1. Disconnect liftgate wiring harness connector.
  2. With the aid of an assistant, remove the liftgate.
2 Liftgate

Procedure

  1. Transfer components as necessary.
  2. Liftgate - Adjust - Clearance and Flushness Specifications (Hatchback) .
  3. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
