Front Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

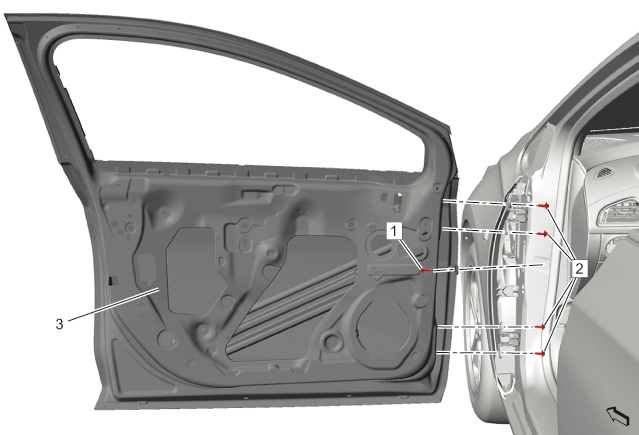

Callout	Component Name
1	Front Side Door Check Link Bolt CAUTION: Fastener Caution Procedure Front Side Door Water Deflector Replacement - Remove Disconnect the electrical connector. Support the door before removing the hinge bolts. Remove the door with the aid of an assistant. Tighten 22 N.m (16 lb ft)
2	Front Side Door Hinge Bolt [4x] Tighten 25 N.m (18 lb ft)
3	Front Side Door Procedure Transfer all of the internal components. Front Side Door - Adjust - Clearance and Flushness Specifications (Notchback) Clearance and Flushness Specifications (Hatchback)

Callout

Component Name

Front Side Door Check Link Bolt

CAUTION:

Procedure

Tighten
22 N.m (16 lb ft)

Front Side Door Hinge Bolt [4x]
Tighten
25 N.m (18 lb ft)

Front Side Door

Procedure
