Engine Oil Pressure Sensor Replacement (LT5)

Courtesy of GENERAL MOTORS COMPANY

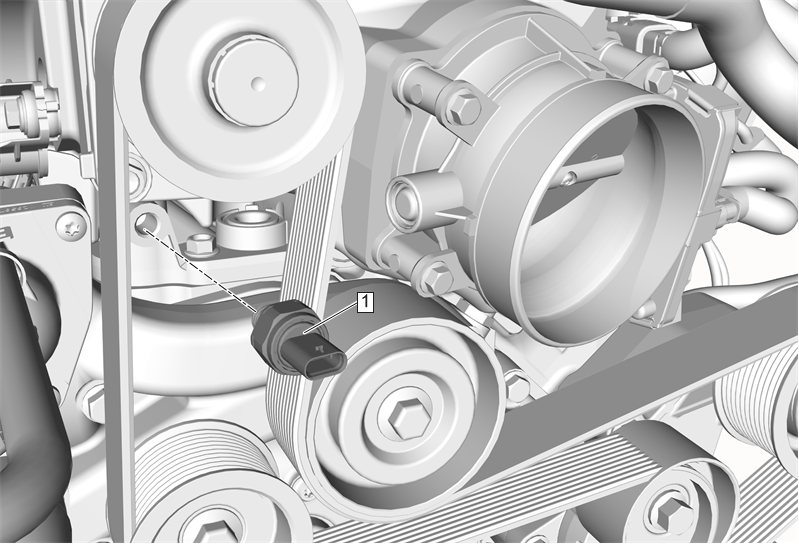

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement (LT5)
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector from the engine oil pressure sensor. Tighten  35 N.m (26 lb ft)
