Intake Manifold Cover Replacement (LT5)

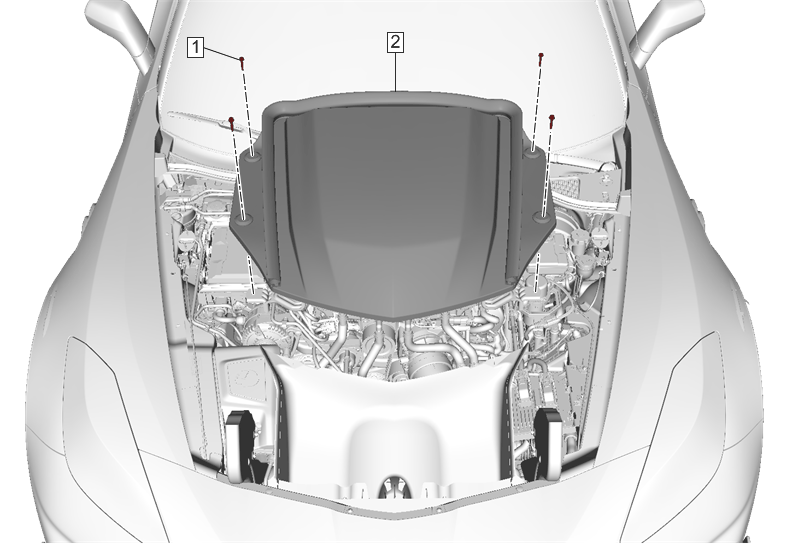

GM4899180Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover Fastener [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Intake Manifold Cover

Procedure

  1. Loosen the 4 Intake Manifold Cover Fastener.
  2. Close the hood
  3. Adjust the Intake Manifold Cover in order to obtain an even gap on all sides between the Intake Manifold Cover and the hood. Also confirm that body feature line on the Intake Manifold Cover aligns with the body feature line on the hood.
