Engine Oil Pressure Sensor Replacement (LT1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LT1) .

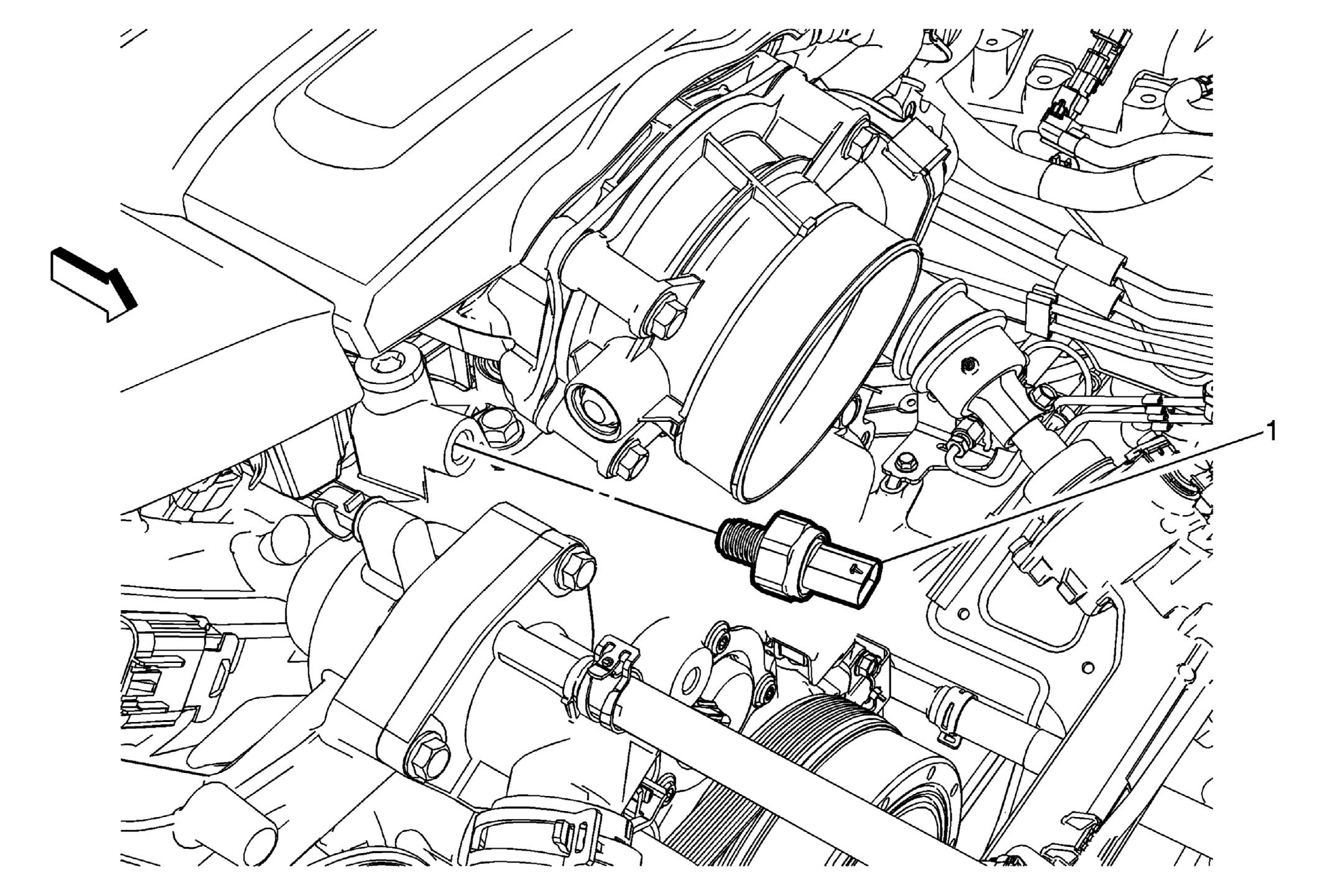

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector from the engine oil pressure sensor. Tighten  35 N.m (26 lb ft)
