Air Cleaner Outlet Duct Replacement (LT1)

Courtesy of GENERAL MOTORS COMPANY

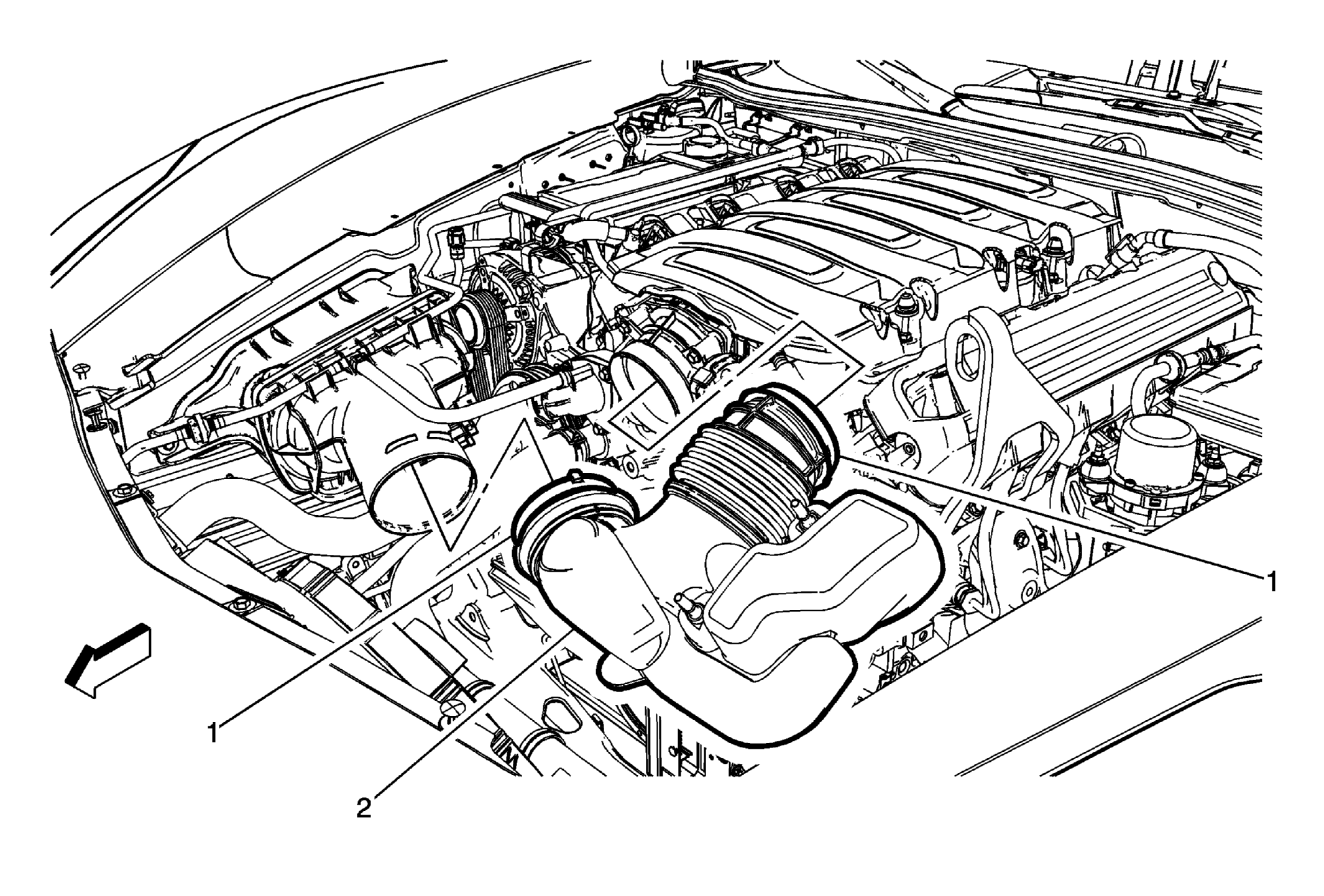

Callout	Component Name
Preliminary Procedure Remove the radiator air upper baffle extension. Refer to Radiator Air Upper Baffle Extension Replacement (LT1, LT4) . Disconnect the two PCV tubes from the air cleaner outlet duct. Refer to Plastic Collar Quick Connect Fitting Service .
1	Air Cleaner Outlet Duct Clamps (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2	Air Cleaner Outlet Duct

Callout

Component Name

Preliminary Procedure

Remove the radiator air upper baffle extension. Refer to Radiator Air Upper Baffle Extension Replacement (LT1, LT4) .
Disconnect the two PCV tubes from the air cleaner outlet duct. Refer to Plastic Collar Quick Connect Fitting Service .

Air Cleaner Outlet Duct Clamps (Qty: 2)

CAUTION:

NOTE:

Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.

Air Cleaner Outlet Duct
