Valve Rocker Arm Cover Insulator Replacement - Right Side (LT4)

Courtesy of GENERAL MOTORS COMPANY

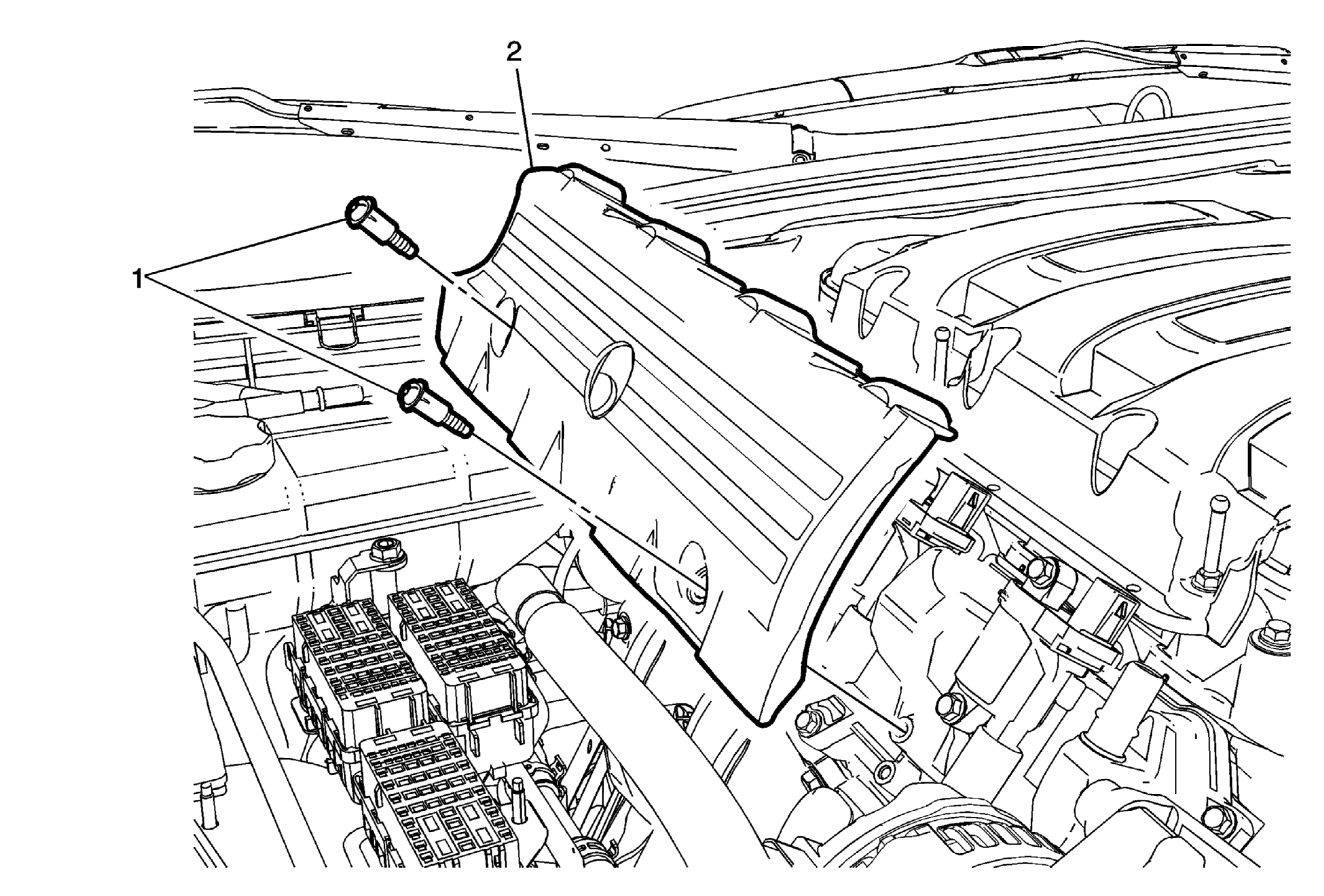

Callout	Component Name
Preliminary Procedures Evaporative Emission Canister Purge Pipe Replacement . Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT1/LT4 - Air Duct To Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - LH Rocker Arm Cover to Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - RH Rocker Arm Cover to Oil Tank) .
1	Valve Rocker Arm Cover Insulator Fasteners [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Valve Rocker Arm Cover Insulator

Callout

Component Name

Preliminary Procedures

Valve Rocker Arm Cover Insulator Fasteners [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Valve Rocker Arm Cover Insulator
