Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - RH Rocker Arm Cover to Oil Tank)

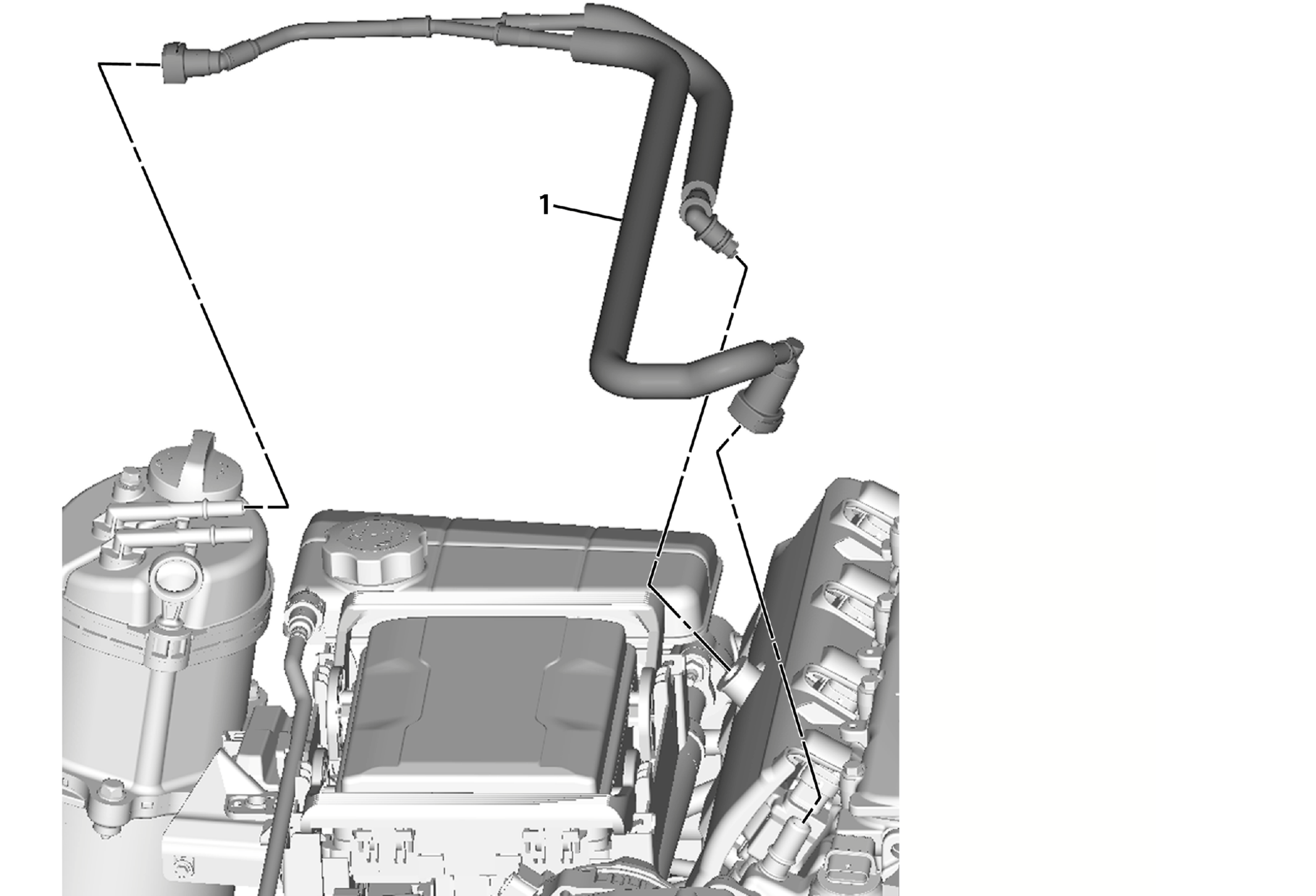

GM3767958Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Positive Crankcase Ventilation Hose
Procedure
Remove tube from the oil tank and the two rocker arm cover locations. Refer to Plastic Collar Quick Connect Fitting Service .
