Ambient Air Temperature Sensor Replacement (ZR1 With LT5)

Courtesy of GENERAL MOTORS COMPANY

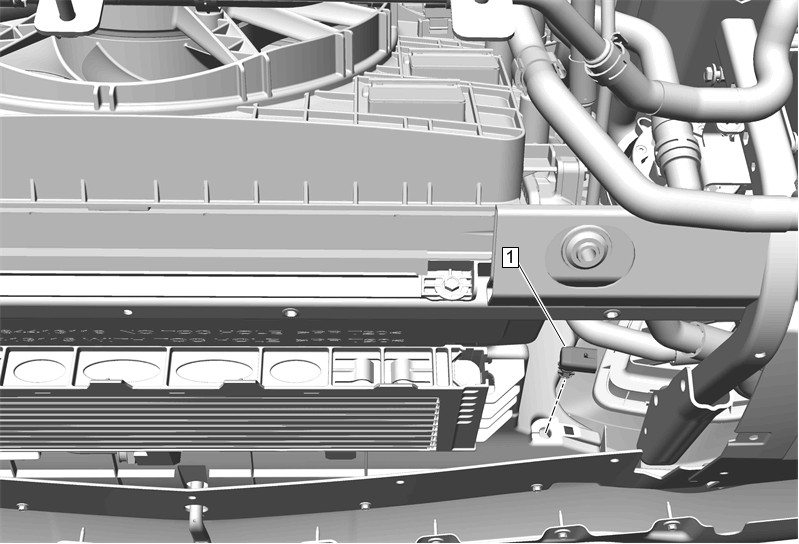

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Lower Stiffener Replacement (ZR1)
1	Ambient Air Temperature Sensor Procedure Disconnect the electrical connector. Remove the ambient air temperature sensor from the radiator air baffle assembly.

Callout

Component Name

Ambient Air Temperature Sensor

Procedure

Disconnect the electrical connector.
Remove the ambient air temperature sensor from the radiator air baffle assembly.
