Front Bumper Fascia Lower Stiffener Replacement (ZR1)

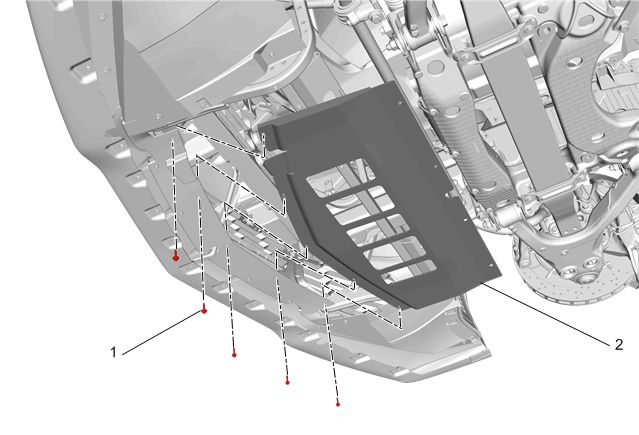

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Air Deflector Replacement (ZR1) |
|
| 1 | Front Bumper Fascia Lower Stiffener Bolt [5x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Lower Stiffener Procedure Remove the front bumper fascia air deflector by pulling rearward to release the retainer tabs from the fascia. |
