Front Bumper Fascia Air Deflector Replacement (ZR1)

Courtesy of GENERAL MOTORS COMPANY

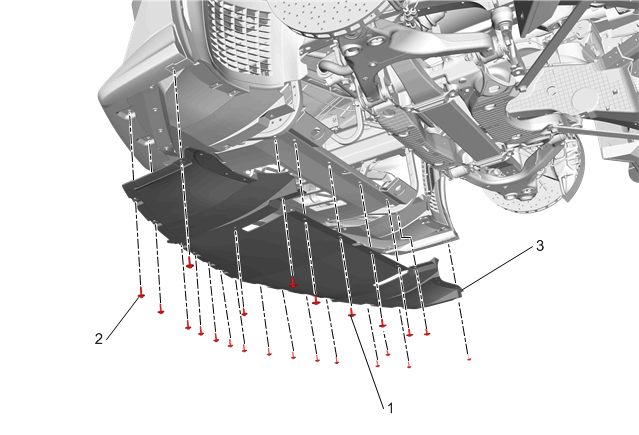

Callout	Component Name
Preliminary Procedures Raise the vehicle. Lifting and Jacking the Vehicle Remove both outer air deflectors. Front Bumper Fascia Air Deflector Replacement - Outer
1	Front Bumper Fascia Air Deflector Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Bumper Fascia Air Deflector Screw[17x] Tighten 2.5 N.m (22 lb in)
3	Front Bumper Fascia Air Deflector Procedure Lower the vehicle. Lifting and Jacking the Vehicle
