Front Bumper Fascia Air Deflector Replacement - Outer

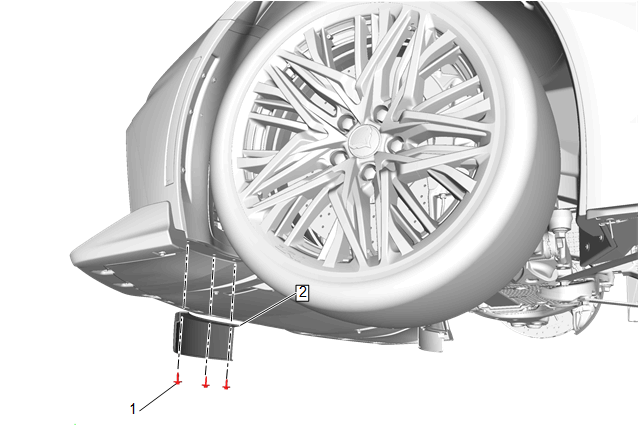

GM4918724Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Bumper Fascia Air Deflector Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia Air Deflector- Outer
