Heater and Air Conditioning Remote Control Replacement

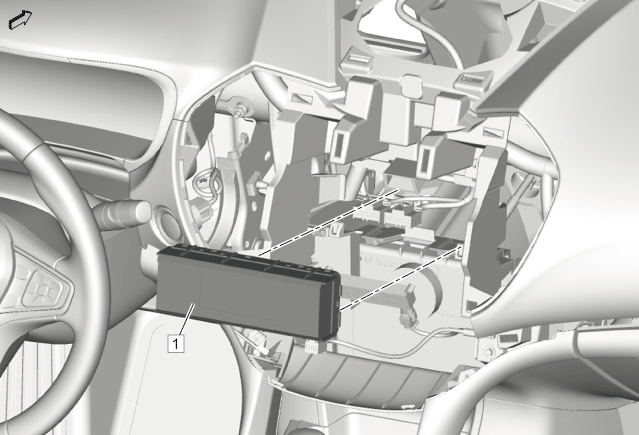

GM4090968Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Prepare the heater and air conditioning remote control for replacement. Refer to Control Module References .
  2. Instrument Panel Center Air Outlet Replacement
1 Heater and Air Conditioning Remote Control

Procedure

  1. Disconnect the electrical connector.
  2. Program the heater and air conditioning remote control. Refer to Control Module References .
