Rear Seat Cushion Removal and Installation

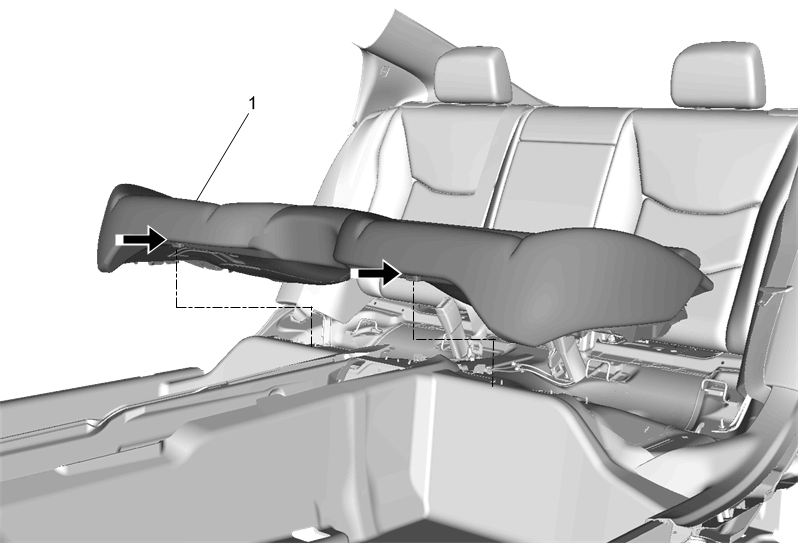

GM4092135
Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Press inward on the two retainer tabs to release. These can be felt through a slot where the seat cushion cover meets the seat cushion pan.
  2. Pull up on the front of the seat cushion and lift out of the vehicle.
  3. { If equipped } Disconnect the electrical connectors.
