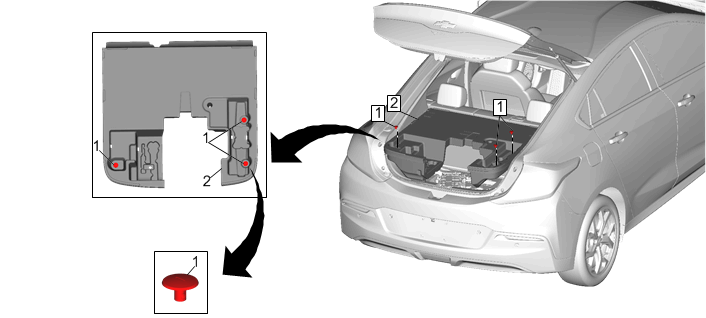

Rear Compartment Floor Stowage Trim Compartment Replacement

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Panel Trim Replacement Remove the inflator kit and any accessories contained in the rear compartment floor stowage trim compartment.
1	Rear Compartment Floor Stowage Compartment Divider Retainer [3x]
2	Rear Compartment Floor Stowage Trim Compartment Procedure Use a flat-bladed plastic tool to remove the push-in retainers.

Callout

Component Name

Preliminary Procedure

Rear Compartment Floor Panel Trim Replacement
Remove the inflator kit and any accessories contained in the rear compartment floor stowage trim compartment.

Rear Compartment Floor Stowage Compartment Divider Retainer [3x]

Rear Compartment Floor Stowage Trim Compartment
Procedure
Use a flat-bladed plastic tool to remove the push-in retainers.
