Transmission Control Lever Knob Replacement

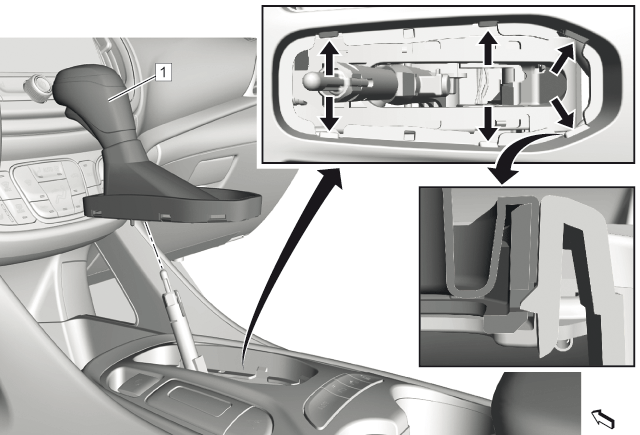

GM4091544Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transmission Control Lever Knob

Procedure

  1. Release the lever boot from the 6 retainers (arrows).
  2. Pull the knob with both hands upward with a twisting motion of max. 1 - 2 degrees to release from the transmission control lever.
  3. Remove transmission control lever knob from the transmission control.
NOTE:

Considerable effort may be necessary to release the knob from the control lever.
