Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

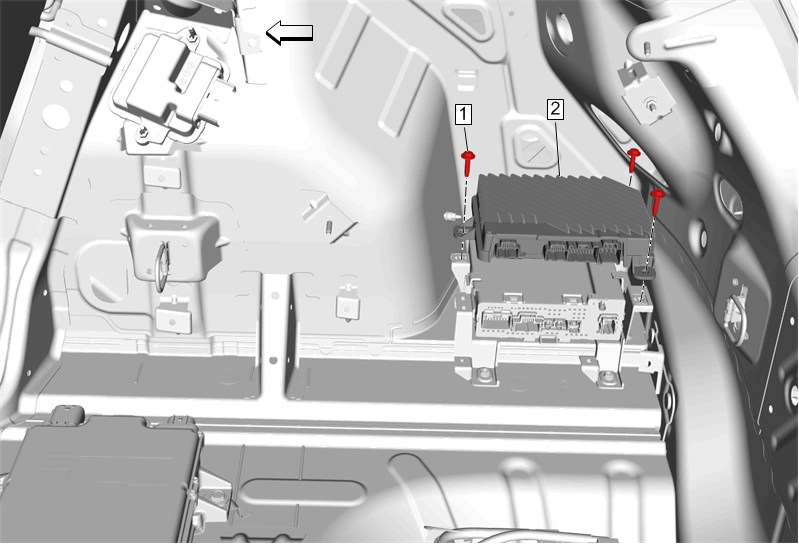

Callout	Component Name
Preliminary Procedure Radio Rear Compartment Speaker Replacement
1	Radio Speaker Amplifier Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier Procedure Disconnect all electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Radio Speaker Amplifier Bracket Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Radio Speaker Amplifier

Procedure
