Radio Rear Compartment Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

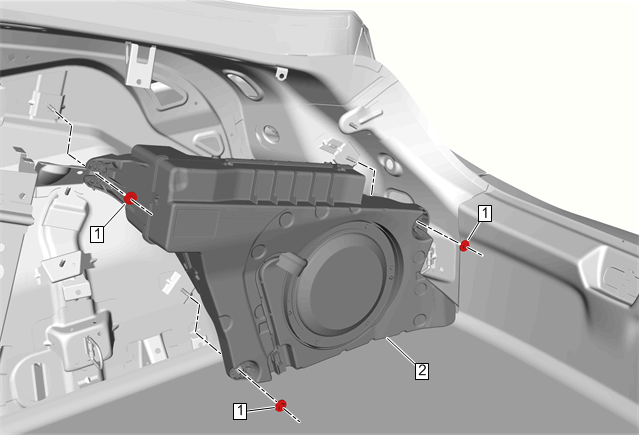

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Radio Rear Compartment Speaker Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Radio Rear Compartment Speaker Procedure Unclip the wiring harness. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Radio Rear Compartment Speaker Fastener [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Radio Rear Compartment Speaker

Procedure
