Air Conditioning Compressor Replacement (2H0)

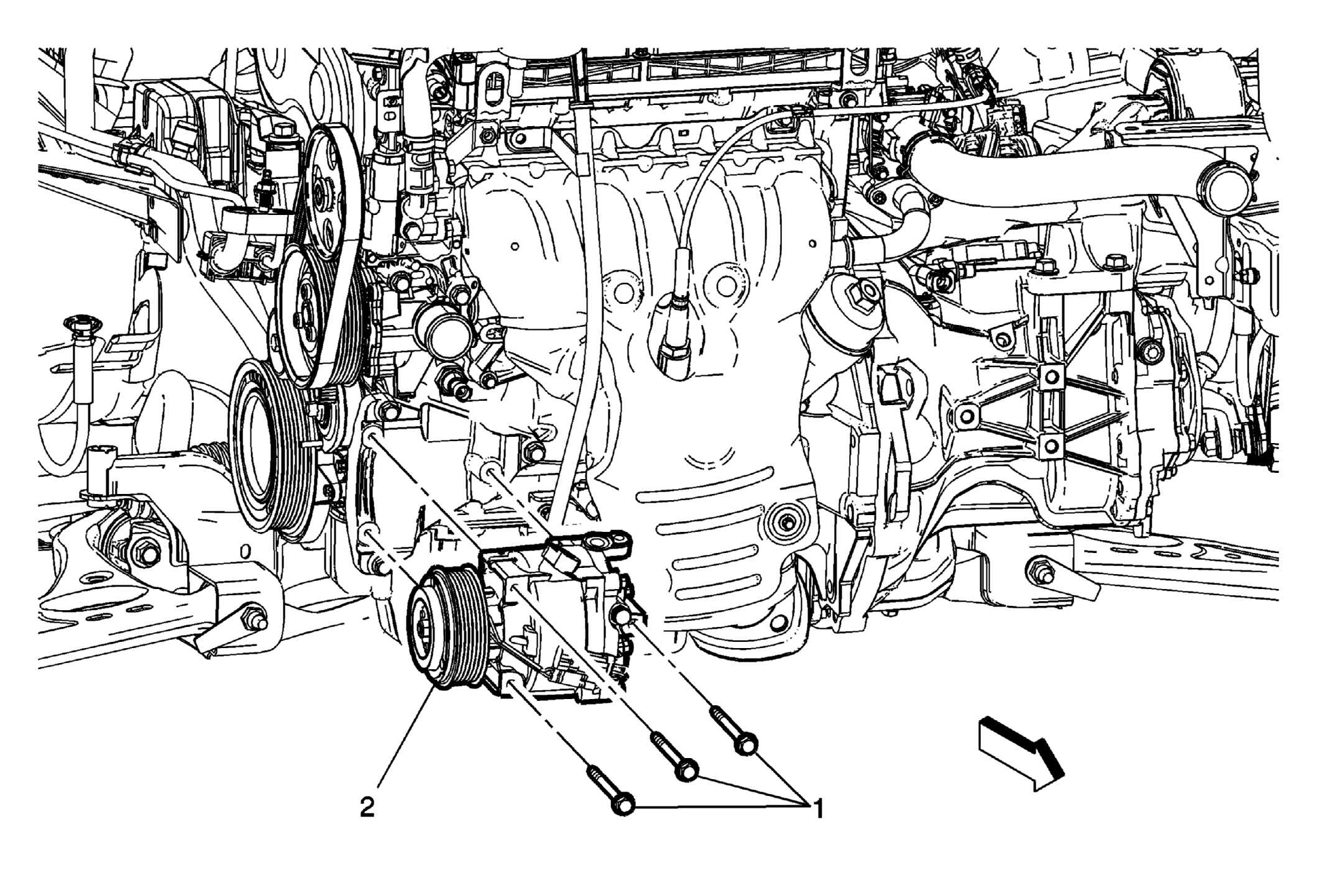

Callout	Component Name
Preliminary Procedures Drive Belt@Air Conditioning Compressor - Remove - Drive Belt Replacement Air Conditioning Compressor Hose@Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (2H0) Air Conditioning Compressor Hose Replacement (LE2) Air Conditioning Compressor Hose Replacement (LUV) Air Conditioning Condenser Hose@Air Conditioning Compressor - Remove - Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2) Underbody Front Air Deflector Replacement
1	Air Conditioning Compressor Bolt[3x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Compressor Procedure When replacing the A/C compressor, balance the compressor oil. Air Conditioning Compressor Oil Balancing

Callout

Component Name

Preliminary Procedures

Air Conditioning Compressor Bolt[3x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Air Conditioning Compressor
Procedure
When replacing the A/C compressor, balance the compressor oil. Air Conditioning Compressor Oil Balancing
