Air Conditioning Compressor Hose Replacement (2H0)

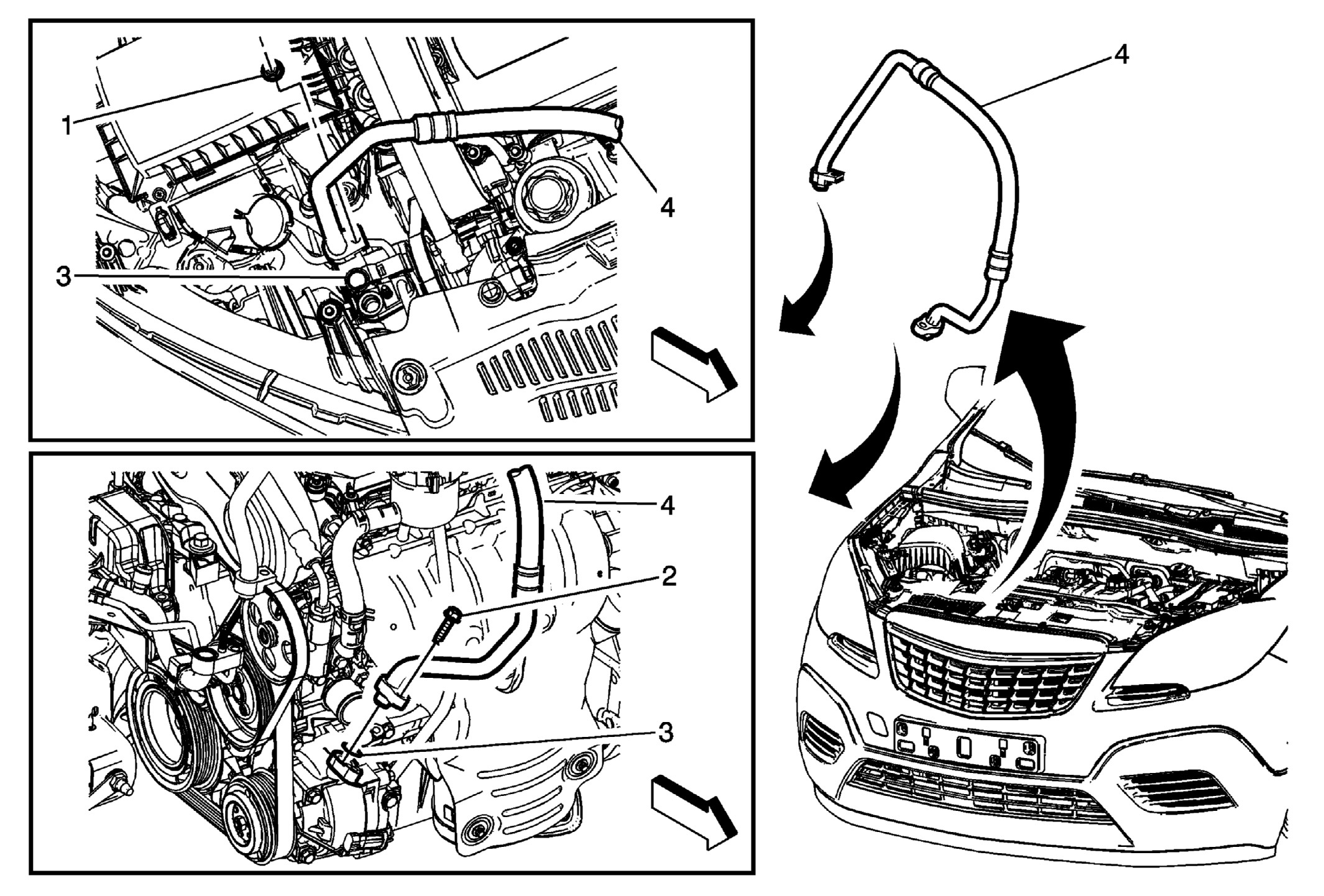

GM2810775
Callout Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
  2. Remove the air cleaner inlet duct.
1 Air Conditioning Compressor Hose Nut
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Hose Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
3 Air Conditioning Compressor Hose Sealing Washer (Qty: 2)
Procedure
Remove and discard the old sealing washers and replace with NEW sealing washers. Refer to Air Conditioning System Seal Replacement .
4 Air Conditioning Compressor Hose
