Air Conditioning Compressor Bracket Replacement (LE2)

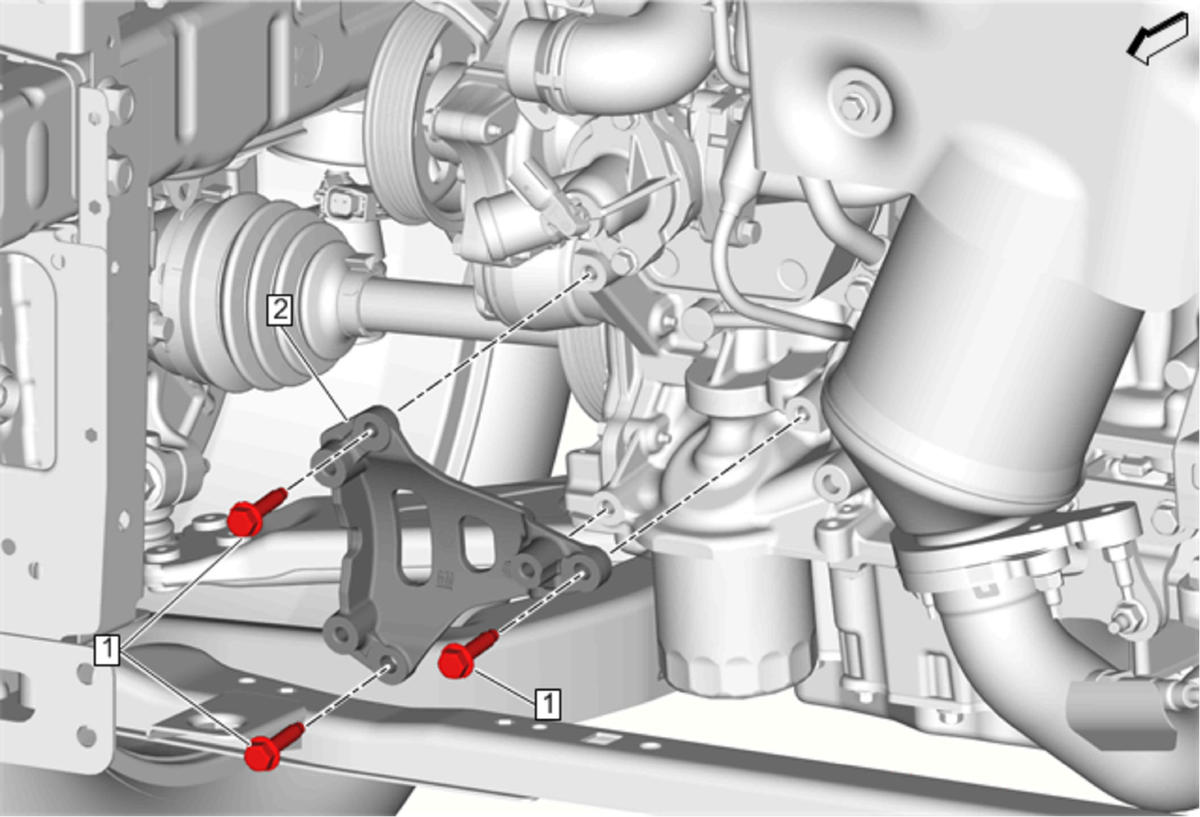

GM4116874
Callout Component Name
Preliminary Procedure
Air Conditioning Compressor Replacement (LE2) Air Conditioning Compressor Replacement (2H0) Air Conditioning Compressor Replacement (LUV)
1 Air Conditioning Compressor Bracket Bolt(3x)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
