Air Conditioning Compressor Bracket Replacement (2H0)

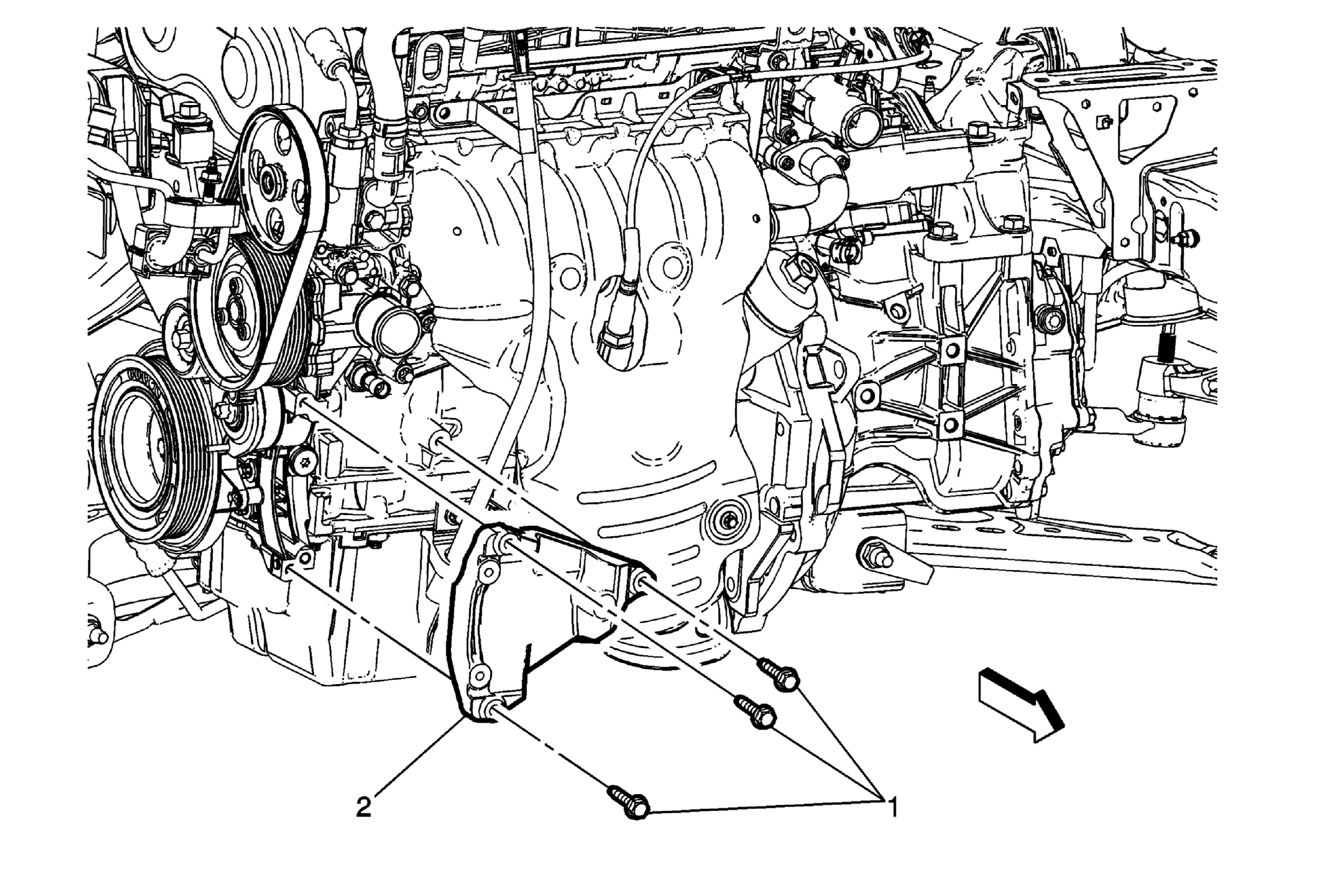

GM2810585
Callout Component Name
Preliminary Procedures
Remove air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LE2) Air Conditioning Compressor Replacement (2H0) Air Conditioning Compressor Replacement (LUV) .
1 Air Conditioning Compressor Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
