Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LE2)

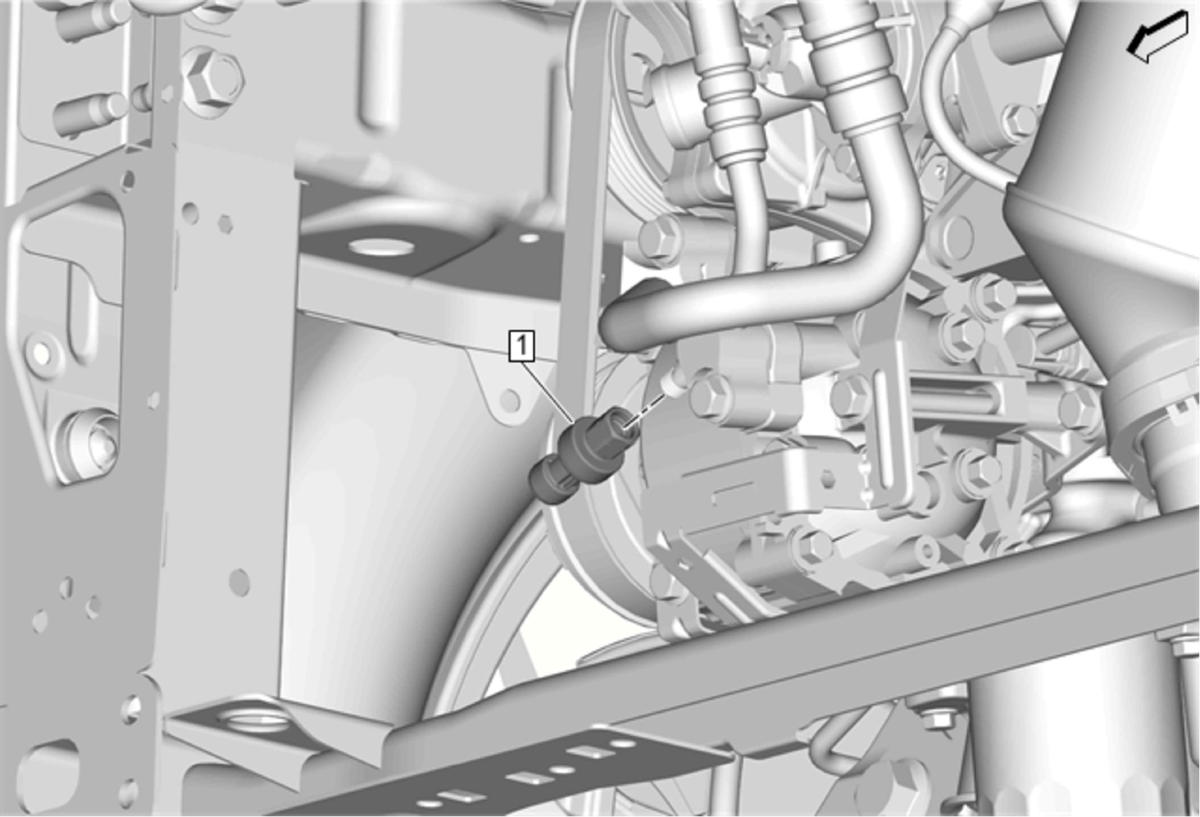

GM4116877
Callout Component Name

Preliminary Procedure

  1. Front Compartment Front Center Insulator Replacement
  2. Air Conditioning Compressor Hose@Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (2H0) Air Conditioning Compressor Hose Replacement (LE2) Air Conditioning Compressor Hose Replacement (LUV)
1 Air Conditioning Refrigerant Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

  1. Disconnect the electrical connector.
  2. Remove and DISCARD the O-ring seal. Air Conditioning System Seal Replacement

Tighten
8 N.m (71 lb in)
