Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Air Cleaner Outlet Duct Replacement  - Remove
  2. Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick) - Remove

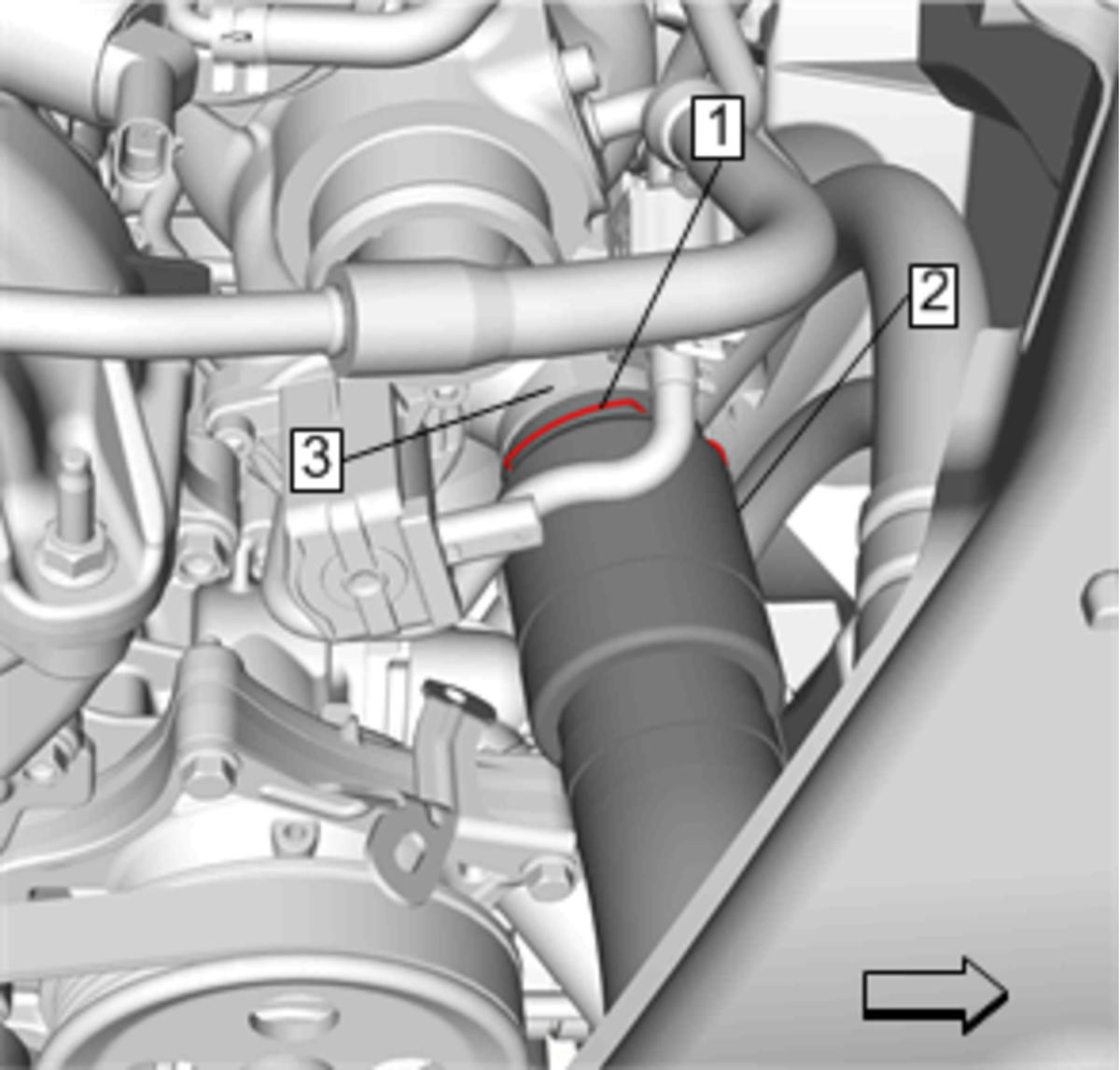

  3. GM4113279

    Charge Air Cooler Inlet Air Hose Retainer Spring (1) - Unclip

  4. Charge Air Cooler Inlet Air Hose (2) @ Turbocharger (3) - Remove

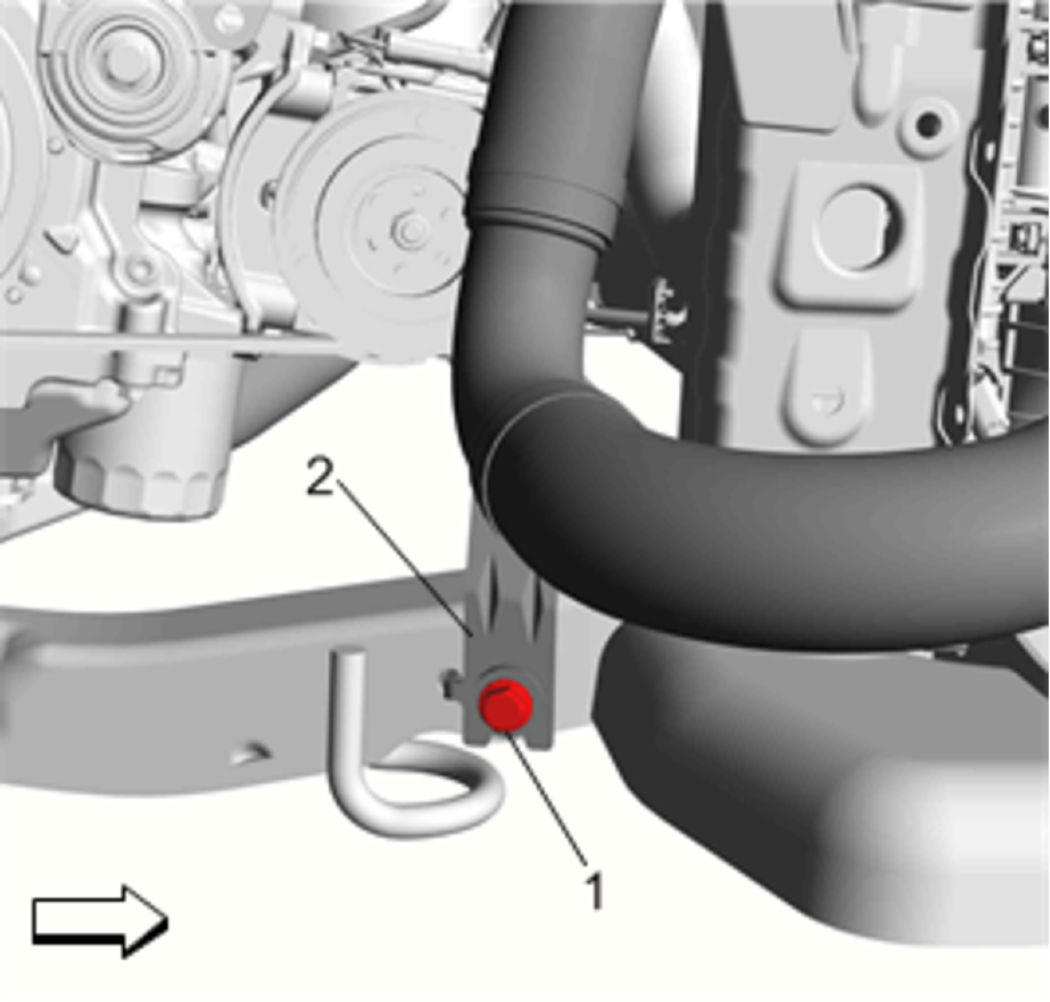

  5. GM4113299

    Charge Air Cooler Inlet Air Hose Bracket Bolt @ Charge Air Cooler Inlet Air Hose (2) - Remove

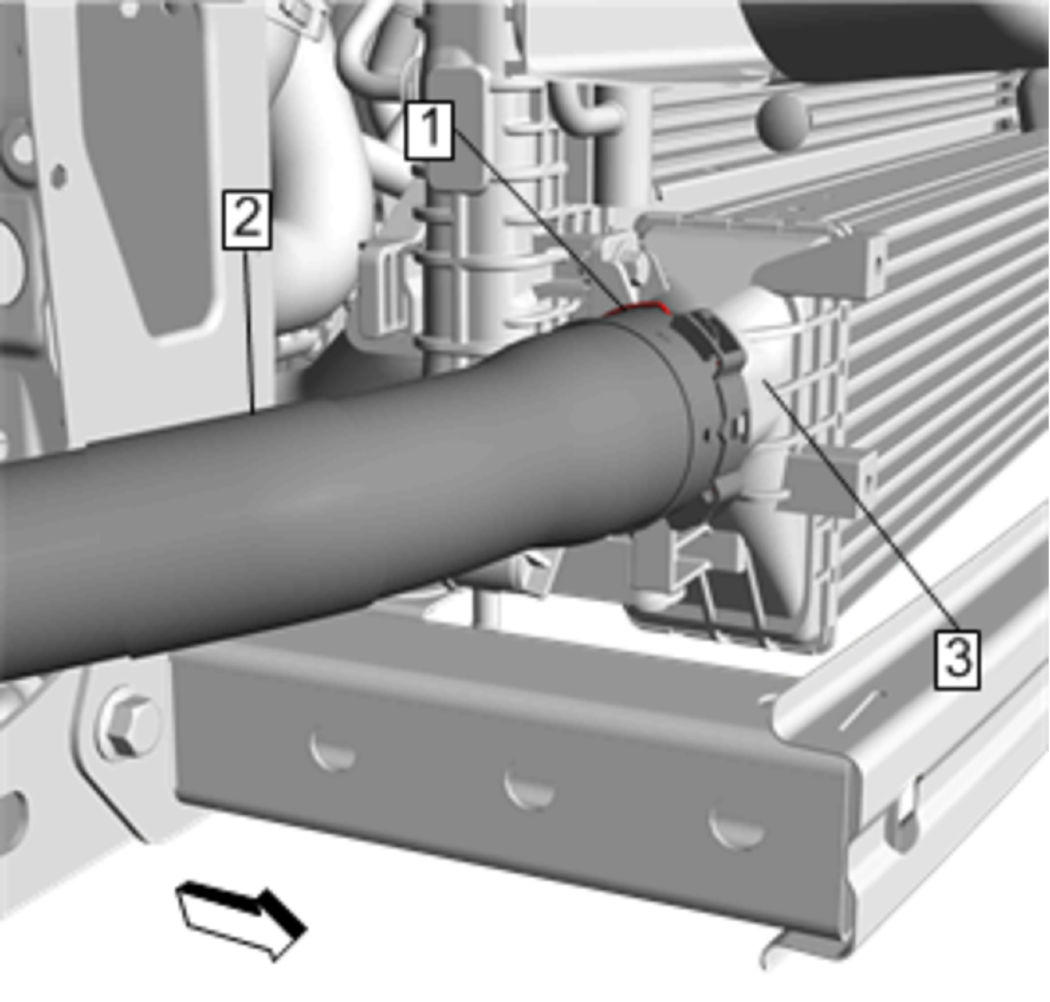

  6. GM4113310

    Charge Air Cooler Inlet Air Hose Retainer Spring (1) - Unclip

  7. Charge Air Cooler Inlet Air Hose(2) @ Charge Air Cooler (3) - Remove
