Engine Mount Bracket Replacement
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

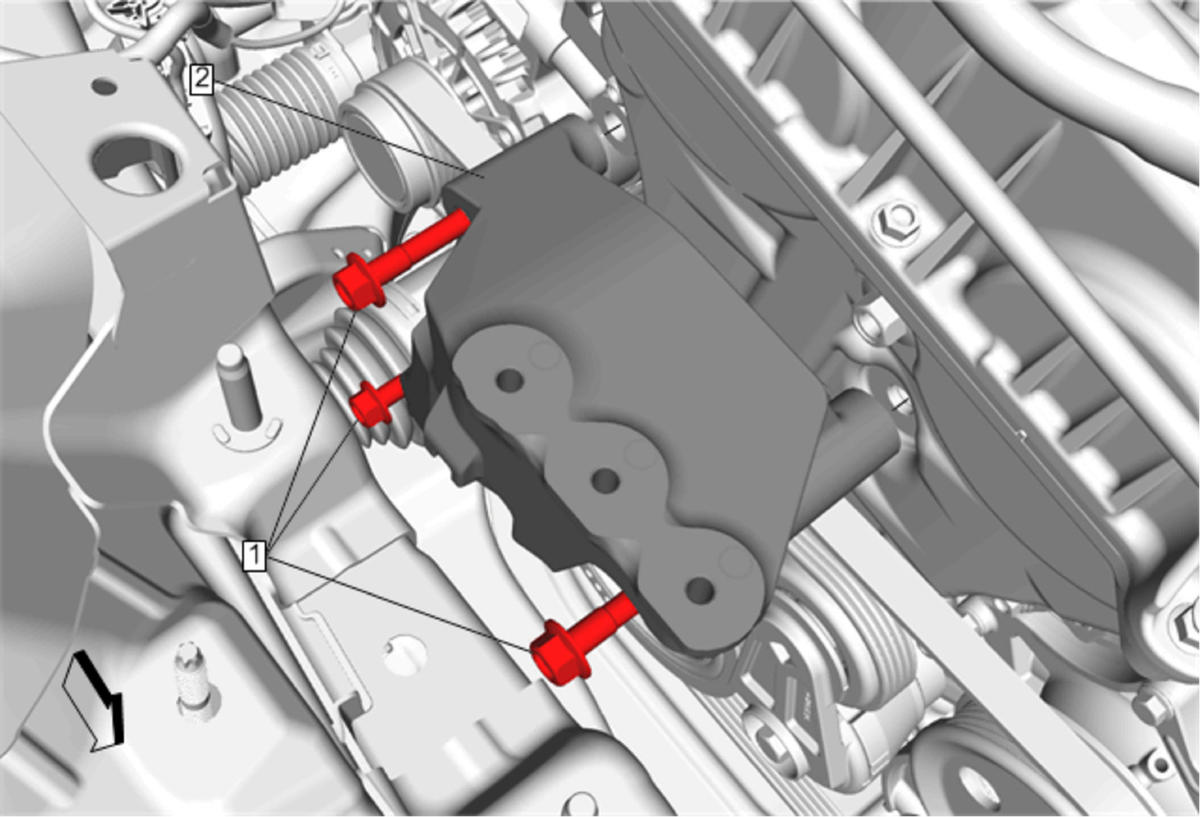

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Mount Replacement
NOTE:
Due to bolt length, the engine mount bracket and engine mount bracket bolts may require simultaneous removal |
|
| 1 | Engine Mount Bracket Bolt[3x]
CAUTION:
Refer to Torque-to-Yield Fastener Caution .
CAUTION:
Refer to Fastener Caution . Procedure Install NEW bolts. Tighten
Special Tool EN-45059 Angle Meter Equivalent regional tools:Special Tools |
| 2 | Engine Mount Bracket |
