Water Pump Housing Replacement (LE2)

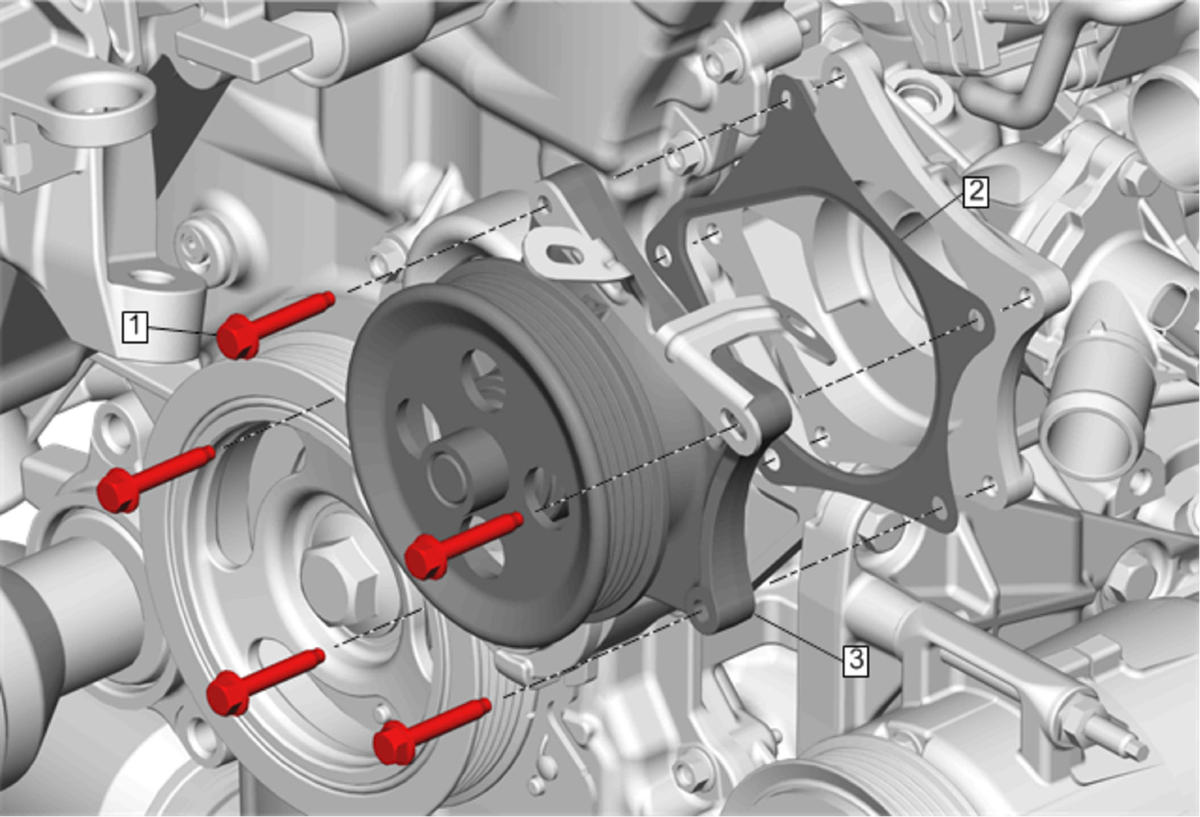

GM3982081
Callout Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling
  2. Air Cleaner Outlet Duct Replacement
  3. Drive Belt Replacement
  4. Drive Belt Tensioner Replacement
1 Water Pump Housing Bolt[5x]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Gasket
Procedure
Install a NEW gasket.
3 Water Pump Housing
