Rear Combination Lamp Module Replacement (Chevrolet with UGE)

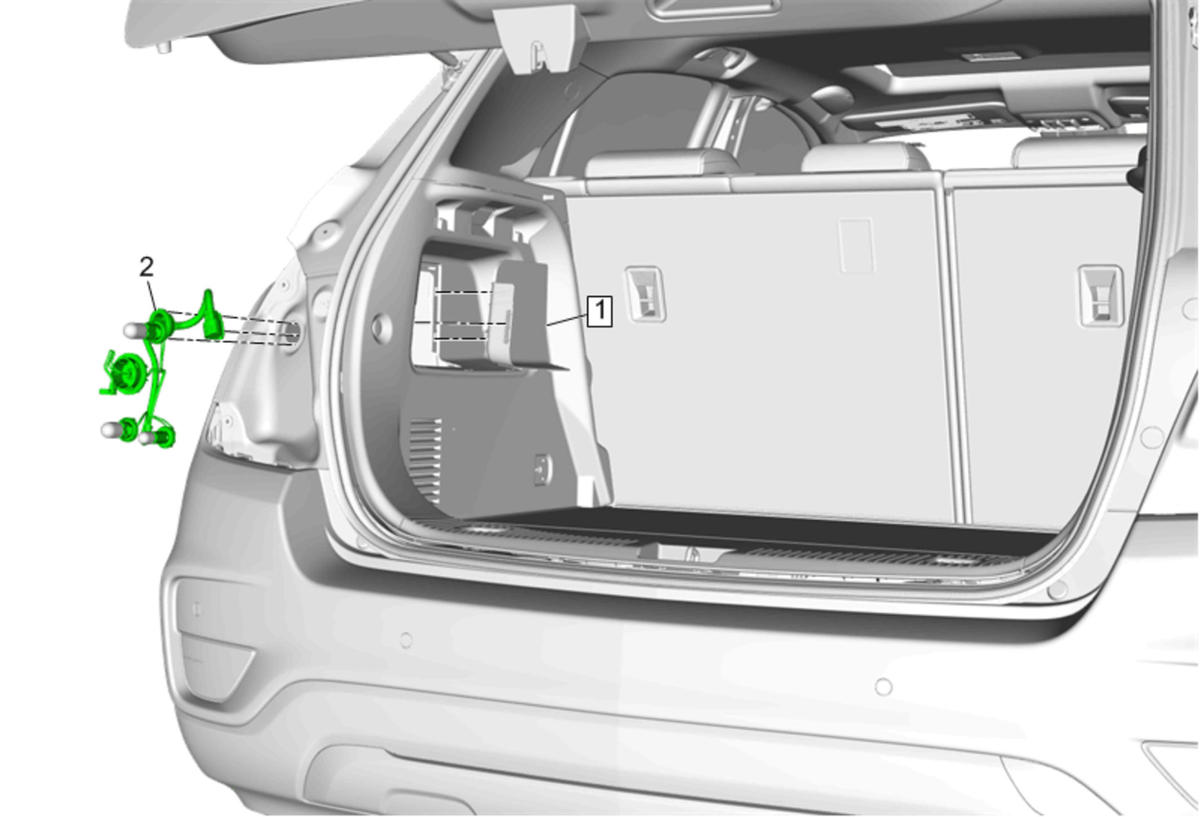

GM4502733
Callout Component Name

Preliminary Procedures

  1. Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE)
  2. Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side)
1 Quarter Trim Panel Cover
Procedure
Disconnect the electrical connector.
2 Rear Combination Lamp Module

Procedure

  1. Pull the rear body structure stop lamp module and grommet rearward to remove.
  2. Transfer components as necessary.
