Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE)

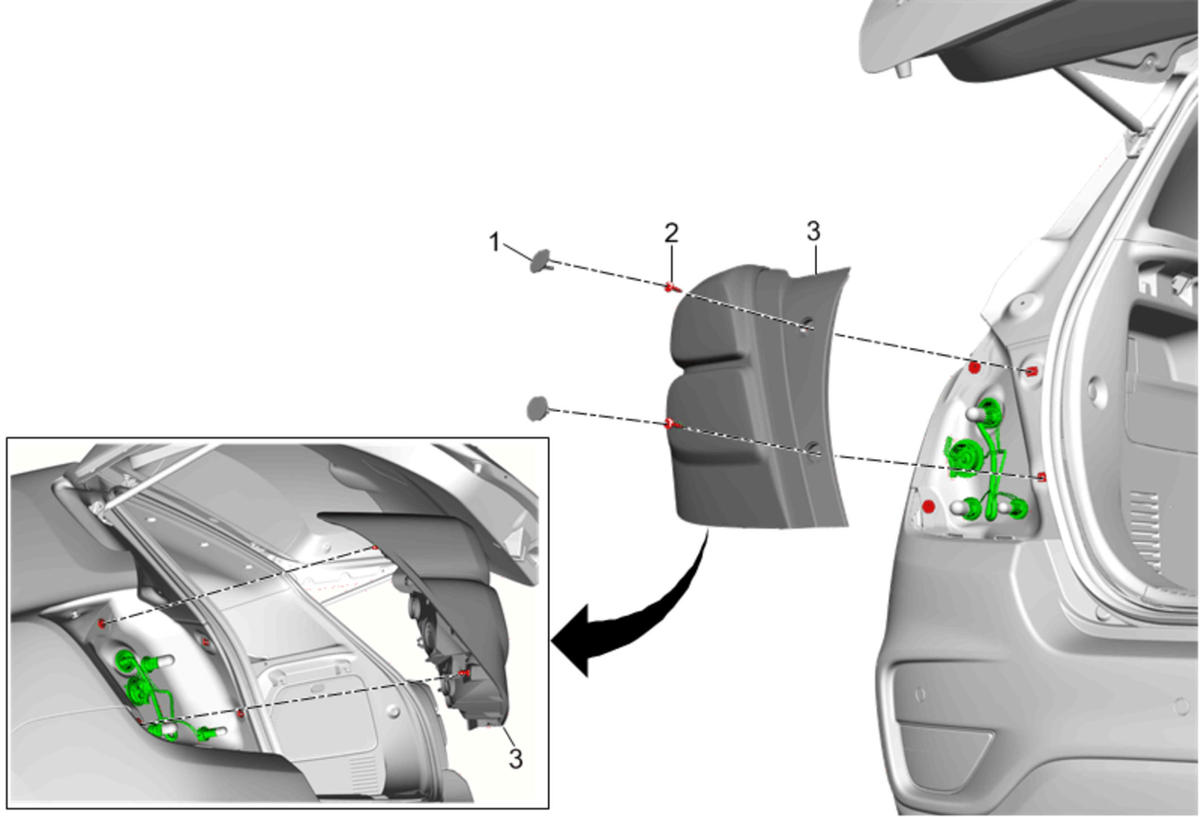

Callout	Component Name
1	Rear Body Structure Stop Lamp Cap [2x]
2	Rear Body Structure Stop Lamp Screw [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Body Structure Stop Lamp Procedure Carefully pull the lamp rearward in order to disengage the locator pins from the body side outer panel. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Rear Body Structure Stop Lamp Cap [2x]

Rear Body Structure Stop Lamp Screw [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Body Structure Stop Lamp

Procedure

Carefully pull the lamp rearward in order to disengage the locator pins from the body side outer panel.
Disconnect the electrical connector.
Transfer components as necessary.
