Backup Bulb Replacement (Chevrolet with UGE)

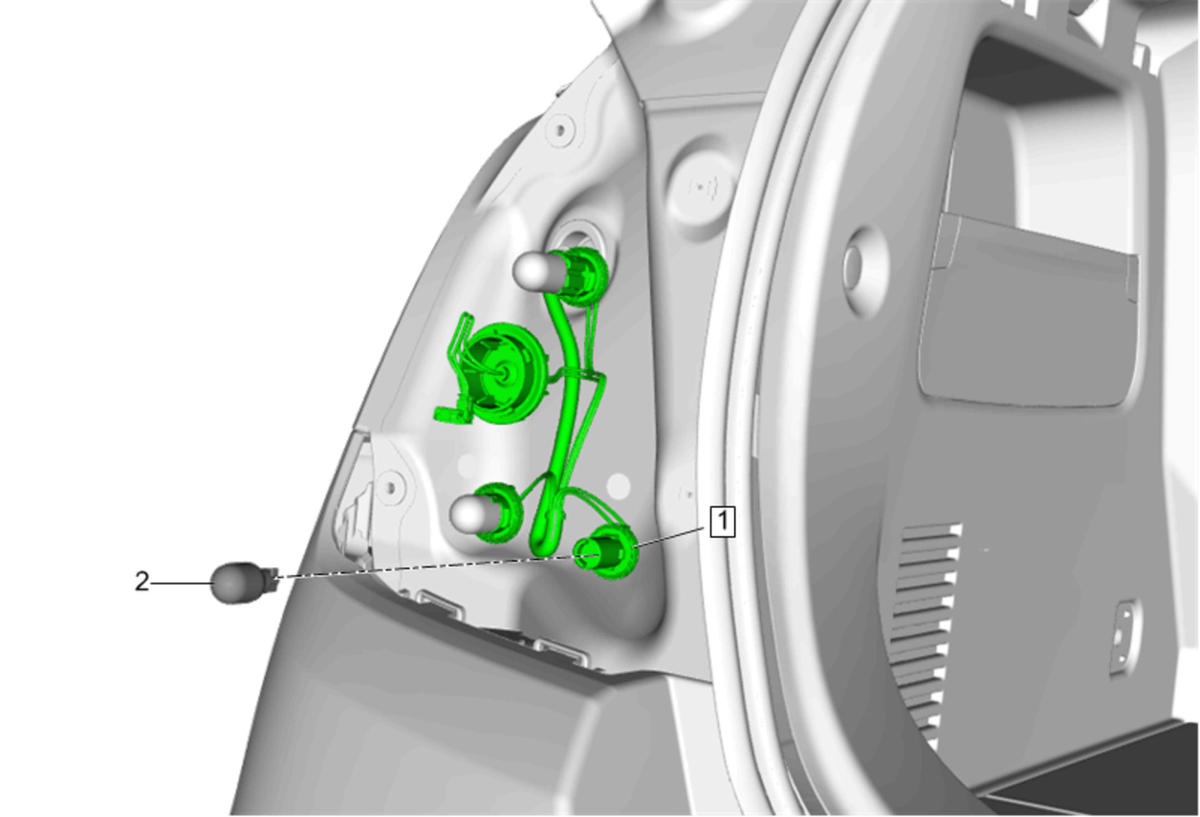

GM4501813
Callout Component Name
Preliminary Procedure
Reposition and support the rear body structure stop lamp. Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE)
1 Backup Lamp Bulb Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.
2 Backup Bulb
Procedure
Pull the bulb straight from the lamp socket.
