Rear Turn Signal Lamp Bulb Replacement (Chevrolet with UGE)

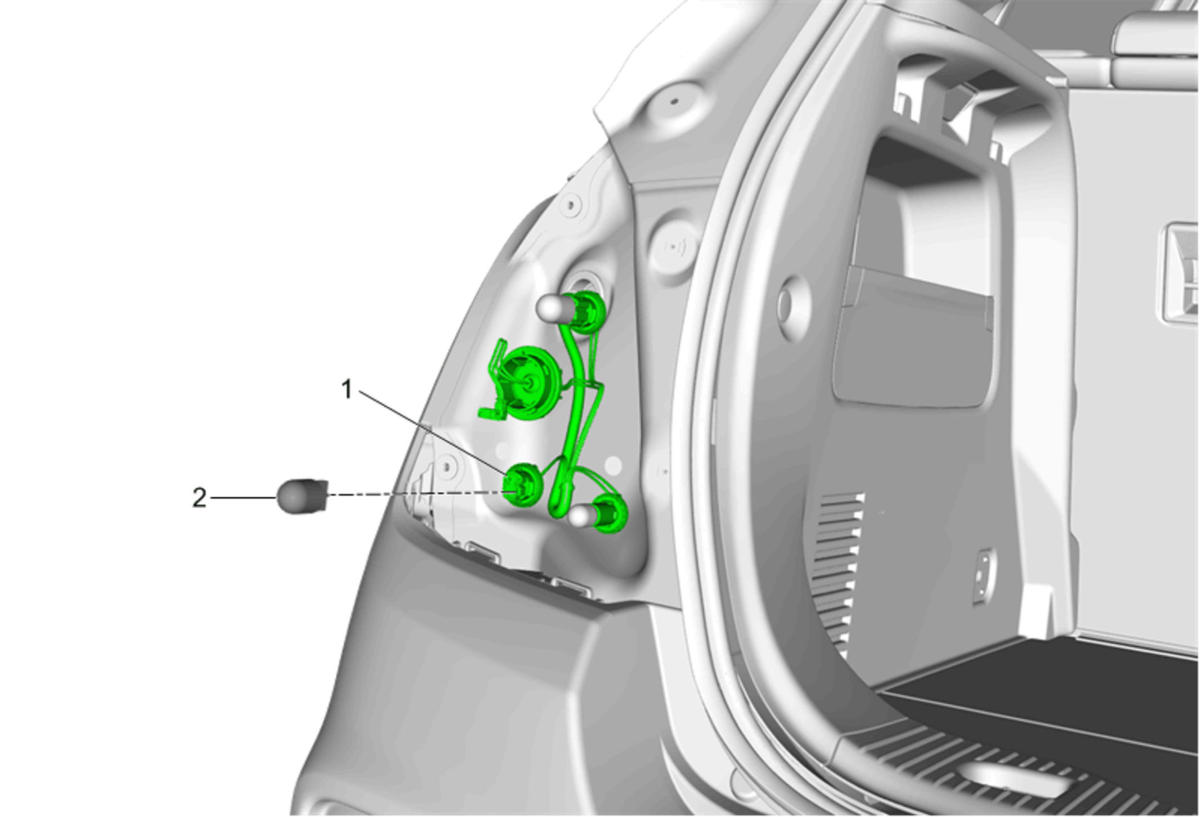

GM4501815
Callout Component Name
Preliminary Procedure
Reposition and support the rear body structure stop lamp. Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE)
1 Rear Turn Signal Lamp Bulb Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.
2 Rear Turn Signal Lamp Bulb
Procedure
Pull the bulb straight from the lamp socket.
