Rear Closure Center Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

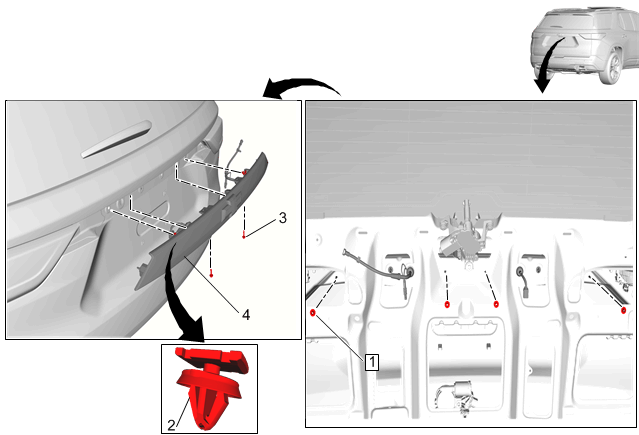

Callout	Component Name
Preliminary Procedures Open the liftgate. Liftgate Lower Trim Finish Panel Replacement . Rear License Plate Lamp Replacement
1	Rear Closure Center Applique Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Closure Center Applique Retainer [2x] Procedure With a trim type release tool, release the rear closure center applique retainers.
3	Rear Closure Center Applique Bolt [2x] Tighten 2.5 N.m (22 lb in)
4	Rear Closure Center Applique Procedure Disconnect the electrical connector.
