Rear License Plate Lamp Replacement

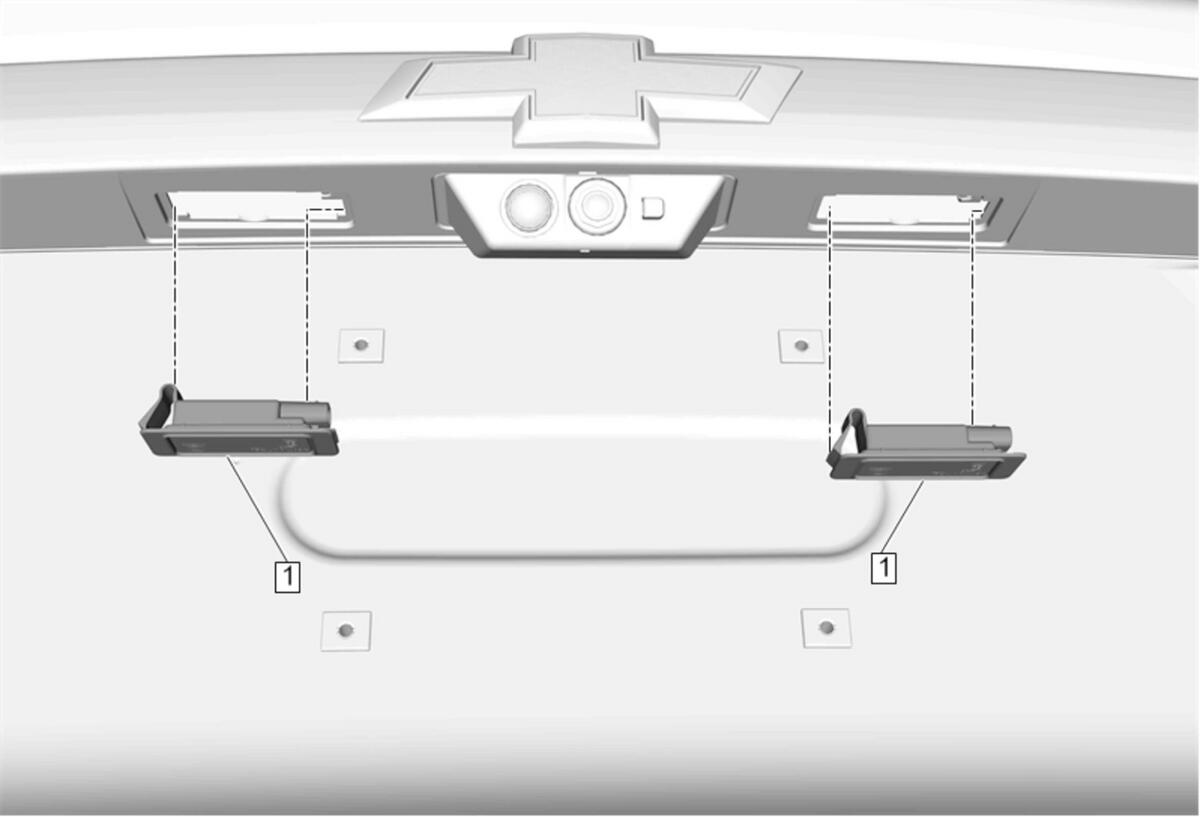

GM4705987Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear License Plate Lamp

Procedure

  1. Using a flat-bladed tool, depress the tab and pull downward to remove the lamp.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
