Rear Closure Signal Lamp Replacement

Courtesy of GENERAL MOTORS COMPANY

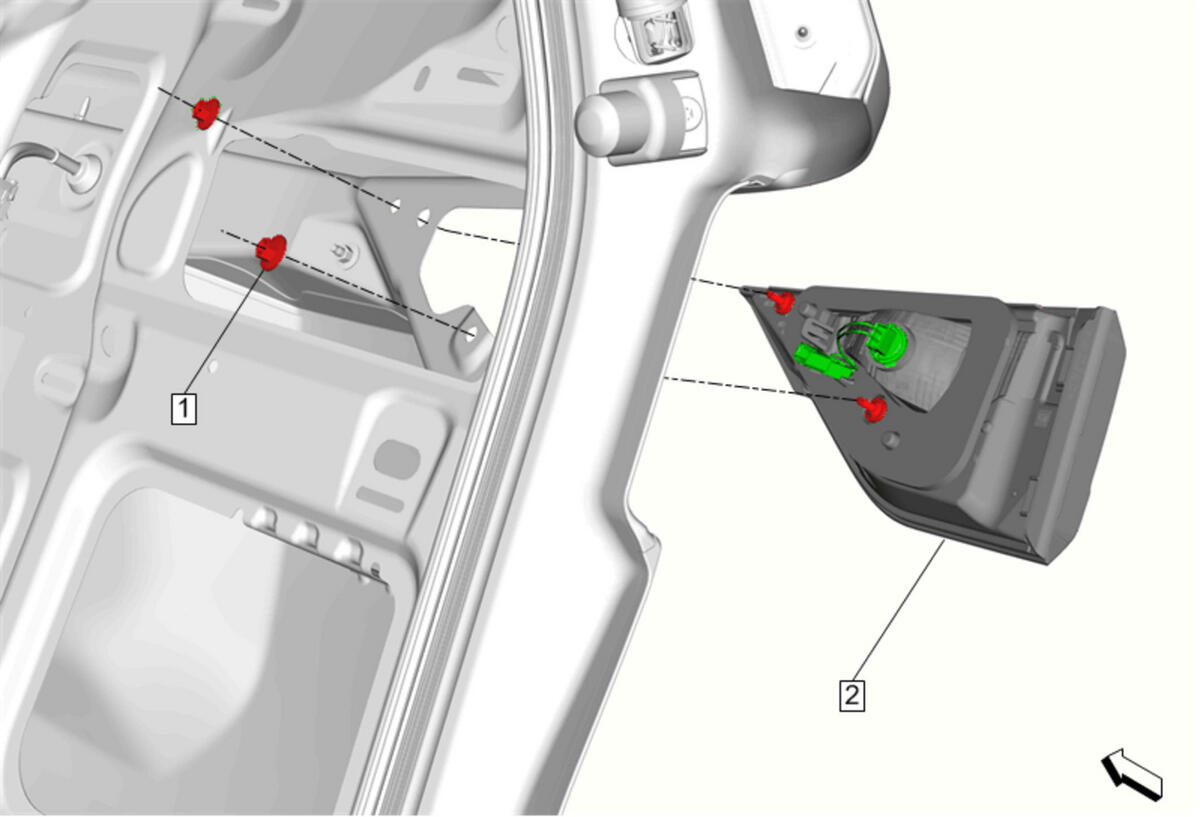

Callout	Component Name
Preliminary Procedure Rear Closure Center Applique Replacement
1	Rear Closure Auxiliary Signal Lamp Nut [2x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Closure Signal Lamp Procedure Disconnect the electrical connectors. Pull lamp rearward and tilt outward to remove from liftgate.

Callout

Component Name

Rear Closure Auxiliary Signal Lamp Nut [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Signal Lamp

Procedure
