Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

When raising or supporting the engine for any reason, do not use a jack under any sheet metal, or the crankshaft pulley, or damage may occur.

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery) .
  2. Front Wheelhouse Liner - Right Side - Remove. Refer to Front Wheelhouse Liner Replacement - Right Side (Cadillac)Front Wheelhouse Liner Replacement - Right Side (Chevrolet)Front Wheelhouse Liner Replacement - Right Side (GMC) .
  3. Exhaust Manifold - Right Side - Remove. Refer to Exhaust Manifold Heat Shield Replacement - Right Side (L83, L86) .
    G00667326Courtesy of GENERAL MOTORS COMPANY

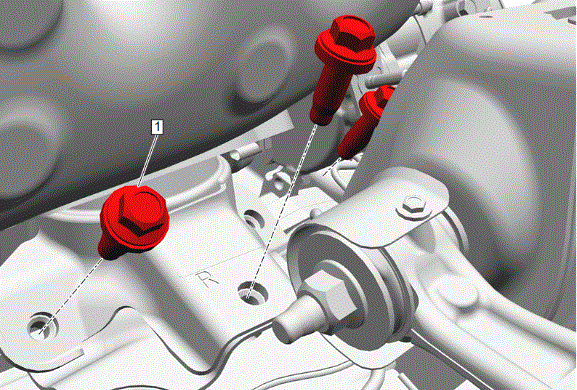

  4. Remove and DISCARD the 4 engine mount frame side bolts (1).
  5. Position a screw jack and a block of wood under the lower engine oil pan.
    G00667318Courtesy of GENERAL MOTORS COMPANY

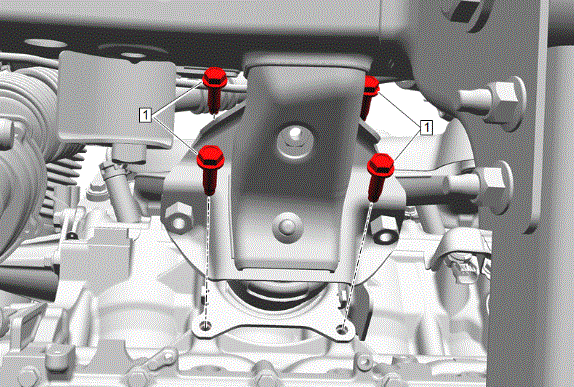

  6. Remove the 4 engine mount to engine block bolts (1).
    G00667330Courtesy of GENERAL MOTORS COMPANY

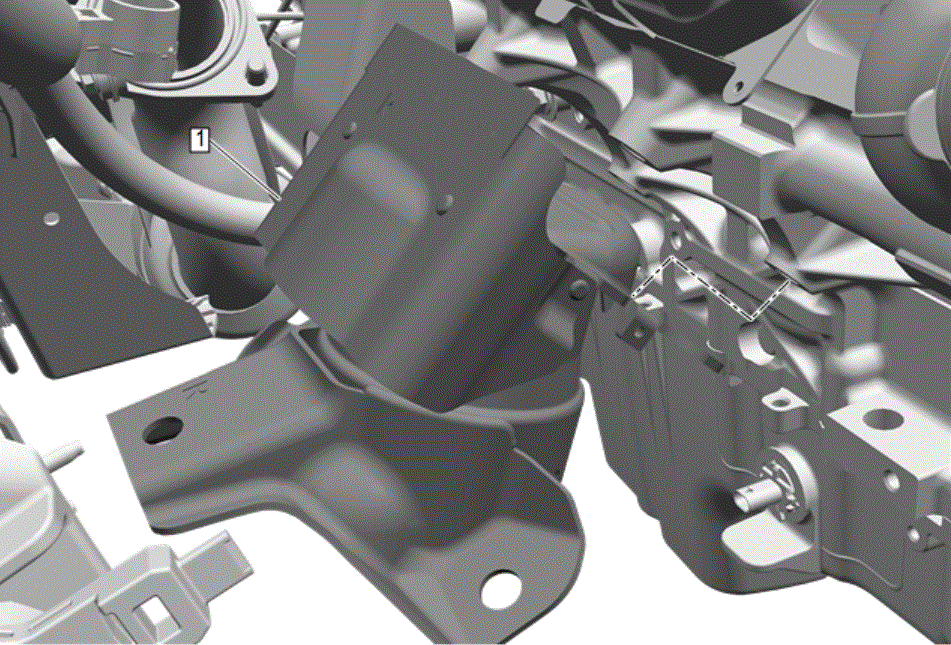

  7. Engine Mount (1) - Remove
