Exhaust Manifold Heat Shield Replacement - Right Side (L83, L86)

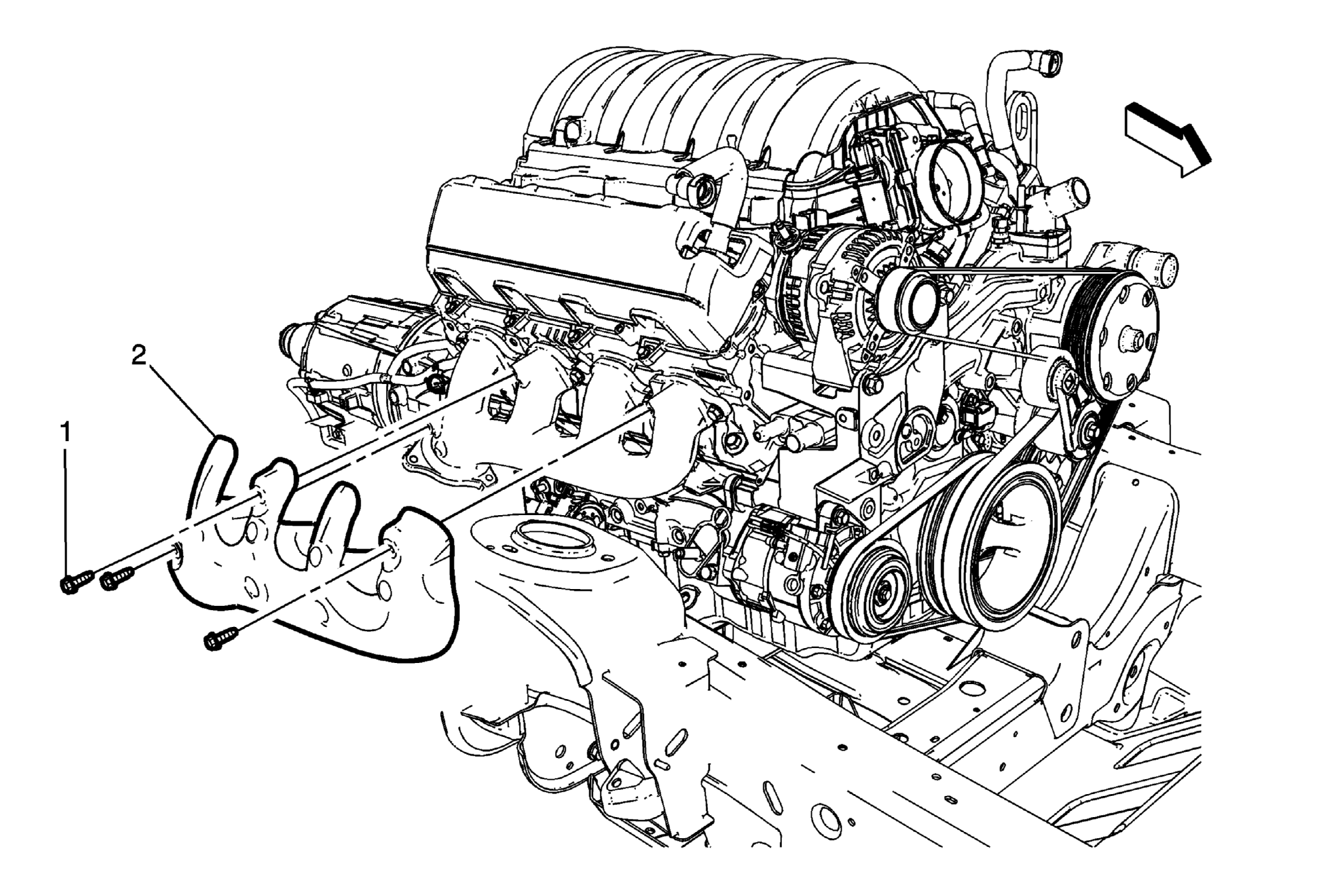

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the heater inlet and outlet hoses from the retaining bracket. |
|
| 1 | Exhaust Manifold Heat Shield - Right Fasteners (Qty: 3)
WARNING:
Refer to Hot Exhaust System Warning .
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Manifold Heat Shield - Right |
