Torque Converter Removal And Holding Fixture Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

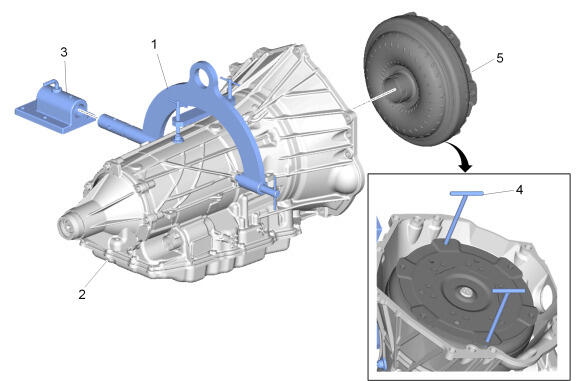

Fig 1: Torque Converter Removal And Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter Special Tools DT-46409 Torque Converter Lifting Handles Equivalent regional tools:Special Tools
2	Automatic Transmission Case Procedure Rotate the transmission so that the converter housing is up and secure with locking pin. Special Tools DT-03289-20 Holding Fixture Base Assembly DT-48989 Holding Fixture Equivalent regional tools:Special Tools

Callout

Component Name

Torque Converter
Special Tools
DT-46409 Torque Converter Lifting Handles
Equivalent regional tools:Special Tools

Automatic Transmission Case
Procedure
Rotate the transmission so that the converter housing is up and secure with locking pin.

Special Tools

DT-03289-20 Holding Fixture Base Assembly
DT-48989 Holding Fixture

Equivalent regional tools:Special Tools
