Low Clutch Roller and 1-2-8-9-10-Reverse Clutch Plates Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

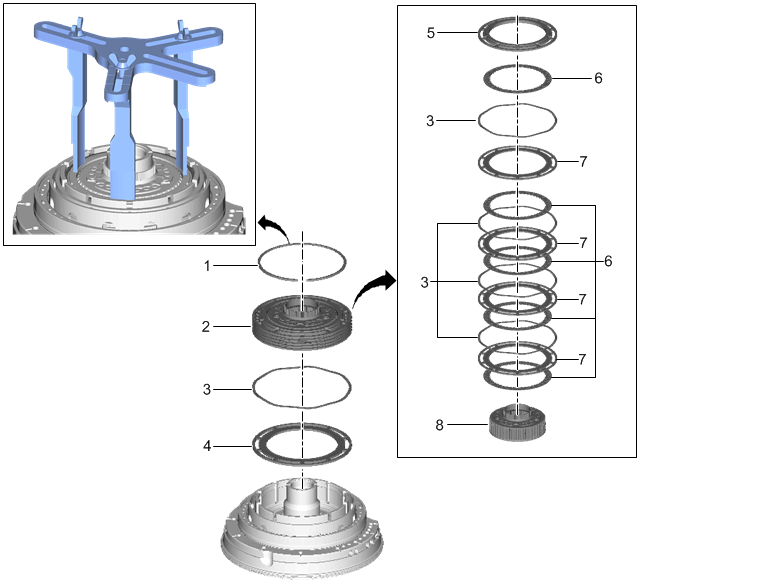

Fig 1: Low Clutch Roller and 1-2-8-9-10-Reverse Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-8-9-10-Reverse Clutch Backing Plate Retaining Ring-Selective Procedure Using the DT-51892 Press Tool with an arbor press, compress the piston just enough to remove the retaining ring. Remove the retaining ring. Special Tools DT-51892 Press Tool Equivalent regional tools:Special Tools
2	Low Clutch Roller & 1-2-8-9-10-Reverse Clutch
3	1-2-8-9-10-Reverse Clutch Piston Return Spring
4	1-2-8-9-10-Reverse Clutch Apply Plate
5	1-2-8-9-10-Reverse Clutch Backing Plate
6	1-2-8-9-10-Reverse Fiber Clutch Plate
7	1-2-8-9-10-Reverse Steel Clutch Plate
8	Low Clutch Roller
