Rotating Clutch, Gear, And Shaft Shell Assembly Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

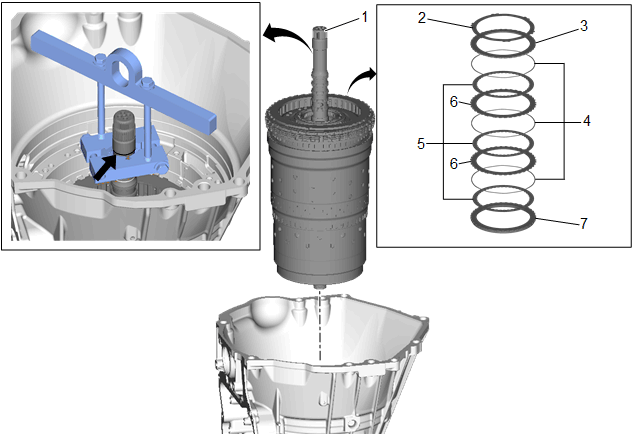

Fig 1: Rotating Clutch, Gear, and Shaft Shell Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rotating Clutch, Gear, and Shaft Shell Procedure Use a hoist or chainfall to lift assembly from case. Ensure that the lifting tool is under the boss on the input shaft shown by arrow. Special Tools DT-45053 Universal Clamp Press DT-52090 Lifting Bar Equivalent regional tools:Special Tools
2	1-2-3-4-5-6-Reverse Clutch Waved Plate
3	1-2-3-4-5-6-Reverse Clutch Apply Plate-Selective
4	1-2-3-4-5-6-Reverse Clutch Piston Return Spring
5	1-2-3-4-5-6-Reverse Clutch Friction Plate
6	1-2-3-4-5-6-Reverse Clutch Steel Plate
7	1-2-3-4-5-6-Reverse Clutch Backing Plate
